Medical Gauze Bleaching Line Machine Medical Cotton Dyeing Machine

Product Description

Machine Name: medical guaze bleaching line is mainly used for bleaching the woven gauze.
The desizing and bleaching process is finished by this line.
Till now we have provided bleaching lines and accessories to all top-rank Chinese gauze factory.
It's a customerized line, we can design as your request according to our experience and your site.
The production line including
LD-991-220 type swing arm coiling machine-→10 tons driving crane transportation-→LD-220 type reversing machine-→10 tons driving crane transportation-→gauze roll transportation track trolley-→LD-1 type horizontal cooker Bleaching machine + LD-55 type gauze vacuum suction machine -→ gauze out of cylinder -→ 10 tons of crane to lift and transport to LD992-220 type horizontal drum dryer -→ LD-2R-220 type pressurized light tracking roll Machine-→LD-220 type slitting and rolling machine (finished product)

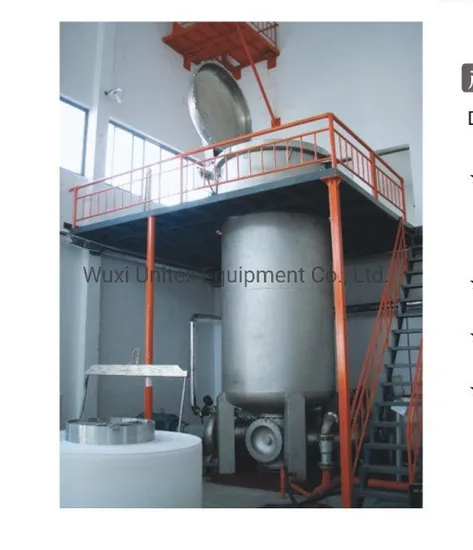

1	Vertical tank	Body material SS316L, kier diameterφ1200-1860, thickness is 5-8mm, height is 1800-3000mm, the cover thickness is 6mm
2	Cover seal	Rubber seal, with pressure lock system
3	Cover open way	Air cylinder opening
4	Safety device	With safety valve, pressure gauge and Hammer Opening Cover Auxiliary
5	Water in&out	single water inlet and double outlet system, with high temperature discharge function.
6	Capacity	Gauze diameter 1050mm
7	Heating way	Inside coil pipe heating, rapid heating≥3ºC/min(steam pressure≥0.6Mpa)
8	Dosing system	1 Dosing tank with new type stirring motor, with reverse-flow mixing system and level auto-control device
9	Dosing pump	1 centrifugal pump 2.2kw

gauze rolling machine
gauze drying machine

gauze bleaching machine

---
