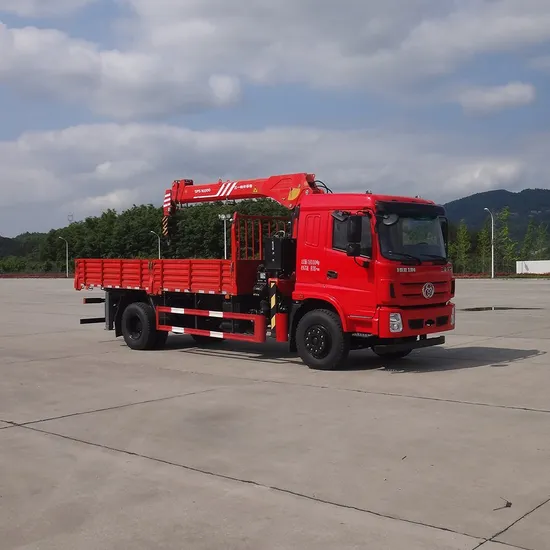

Tri-Ring Heavy Lifting Mobile Crane Truck Platform Lifting Truck Mounted Crane Transport Vehicle

Product Description

Tri-Ring Heavy Lifting Mobile Crane Truck Platform Lifting Truck Mounted Crane Transport Vehicle Product Description
Truck Mounted Crane Transport VehicleA truck-mounted crane transport vehicle is a type of vehicle that is equipped with a crane mounted on the truck chassis. This type of vehicle is commonly used for transporting and lifting heavy loads in various industries, such as construction, infrastructure development, and logistics.The truck-mounted crane provides a convenient and efficient way to transport heavy materials and equipment to different locations. The crane can be used to lift and load/unload items onto the truck bed or to lift and move items at the job site. This eliminates the need for additional equipment or labor to load and unload heavy items, saving time and resources.Truck-mounted crane transport vehicles come in a variety of sizes and configurations, depending on the payload capacity and lifting requirements. They are designed to be versatile and mobile, allowing them to access remote or difficult-to-reach locations where traditional cranes may not be able to operate. Overall, they are a valuable asset for businesses that require heavy lifting and transportation capabilities.
Product Parameters

TRUCK MOUNTED CRANE TRANSPORT VEHICLE SPECIFICATIONS
Vehicle Model			STQ5188JSQ6
Basic Vehicle Parameters	Drive Type		4×2
	Total Weight (kg)		18000
	Curb Weight(kg)		12090
Vehicle Appearance Parameters	Length (mm)		9000
	Width (mm)		2550
	Height (mm)		3850
	Wheelbase (mm)		5200
Performance Parameters	Maximum Speed (km/h)		89
	Maximum Climbing Grade (°)		30%
Chassis Configuration Parameters	Engine	Engine Emission Standards	Euro II, III, IV, V, VI
		Manufacturer	Guangxi Yuchai Machinery Co., Ltd./Weichai Power Co., Ltd.
		Displacement(L)	4.6-6.2L
		Rated Power (Kw)	147-180
	Cab	Type	With Semi-High Roof Cab
		Model	T280 (2.24m Wide)
		Standard Configuration	Bluetooth Radio, Laminated Glass, Electric Doors And Windows, Central Locking, Wide Bumper, Roof Box, Multi-Function Steering Wheel
	Gearbox	Gearbox Type	Manual, 8 Gears
	Front Axle	Type	Drum Brake
		Loadable Weight (Kg)	5000
	Rear Axle	Gearbox Type	Drum Brake
		Loadable Weight (Kg)	10000
		Speed Ratio	4.444
	Frame	Section Size (mm)	300×80×(8+5) Full Three-Layer Outsourcing
	Leaf Spring	Number of pieces	9 Front Springs, 10+8 Rear Springs
	Tire	Type	Steel Wire Tire
		Quantity	6+1
		Model	10.00R20-18
	Steering System	Type	Hydraulic Power Steering System
	Braking System	Brake Type	Drum Brakes With ABS Anti-Lock Braking System
		Service Brake System Type	Dual Circuit Air Brake
		Parking Brake System Type	Spring Brake
		Parking Control Type	Manual Brake Operation
	Electrical System	System Voltage	24V
		Battery	140AHDual Battery
Upper Body Configuration Parameters	Crane	Maximum Lifting mass (kg)	7000
		Crane Nrand	,
		Maximum Lifting Height (m)	15
		Rotation Angle (°)	360
		Maximum Working Pressure (MPa)	26
		Crane Weight (kg)	3900
		Leg Type	H
		Leg Span (m)	2.28-5.9
	Cargo Box	Cargo Box Size (mm)	6100×2450×600
		Material	Q235
		Material Thickness	Wall thickness 2 Bottom thickness 5
Other Configuration		Triangular Warning Sign, Tool Kit, Spare Tire On The Side Of The Frame, ABS, Air Conditioning.

Detailed Photos
High-strength Steel Boom
Adopt BS700 high-strength steel, quality light boom, reliable industry main boomLuxury Cab
The cab has multimedia audio and heating and cooling ar-conditioning, which not only has a wide field of vision but also provides comfortable driving.Hydraulic Outrigger
Fully automatic hydraulic telescopic legs, joystick operation, easy to leam360 Rotation
50 forged intemal gear plate 360° rotation, with planetary reducer Cargo Body
The cargo box is large in volume, strong and durable, easy to use, and beautiful. Technical Drawing
Company Profile
Researched by board of directors of Tri-Ring Group Company and approved by Hubei SASAC, Hubei Tri-Ring Motor Industrial Park was initiated on April, 28th 2010 and was put into operation in 2014 according to the revitalization plan of auto industry in Hubei Province and the twelfth five-year plan of Tri-Ring Group Company. The park is in an irregular rectangular shape, with a length of 1148m and width of 643-814m. It has a floor area of 718013m2 and building area of 470700m2.
Hubei Tri-Ring Motor Co., Ltd. has gained over 40 years experiences in the R&D of special purpose vehicles. It created a well-structured, highly competent and highly efficient R&D team which can meet with the trend of auto industry as well as the development demand of the company. Tri-Ring R&D center has been accredited as provincial enterprise technical center, High-tech enterprise, Engineering Research Center and Innovative enterprise etc. ever since 2010. It carries out long-term cooperation with renowned institutes and engineering companies like Wuhan University of Technology, Huazhong University of Science and Technology, TJ Innova Engineering & Technology Co., Ltd. etc.
The company has a national standard vehicle testing center, of which there are various testing facilities of 265 sets, fulfilling 35 different performance tests to chassis, complete vehicles and key auto parts in terms of power performance, fuel consumption performance etc.
The company possesses a flexible assembly line for heavy, medium, light duty traditional diesel chassis and new energy chassis (including subassembly of engine, gearbox and axles), as well as commercial vehicle production line relating to stamping, metal processing, welding, refitting and painting, which is capable of producing various commercial vehicles of 50,000 units annually.
The company has its own cabin factory. It has over 400 sets of equipment for stamping, welding, painting, assembly, metal cutting, heat treatment and power supply, of which there are over 60 sets of press machines of 10T-1300T and over 1000 sets of large scale and medium scale jigs and molds. The cabin factory is capable of developing and manufacturing cabins for heavy, medium, light and agricultural vehicles, with an annual productivity of cabins for 30,000 units heavy and medium vehicles, stamping parts for 800,000 units, and window glass regulators for 1,000,000 units.
Huanmin auto parts company is a wholly-owned subsidiary of Hubei Tri-Ring Motor Co., Ltd. Huanmin is mainly engaged in the manufacturing of parts for auto chassis, of which frame is its key product. Its current annual productivity of frame is 20,000 units.
The company has a comprehensive and mature sales network of over 200 distributors and service network of over 500 service stations all over China. Besides, its products are widely exported to overseas market including South America, Southeast Asia, Africa, Middle East etc. Worth to mention, its electric vehicles were exported to South America in large quantities.
FAQ
Q1. Is your company a factory or a trading company?A: We are a leading manufacturer of special trucks, tank trucks, trailers, and spare parts in China. Welcome to visit our special vehicle production base in Suizhou City, China.Q2. What are your payment terms?A: T/T 30-50% as deposit, the rest to be paid before delivery. We will show you photos of the products and packages before you pay the balance.Q3. What are your delivery terms?A: EXW, FOB, CFR, CIF, DAF, DDU.Q4. How about your delivery time?A: Generally, it takes 20 to 30 days after receiving the advance payment. The specific delivery time depends on the items and quantity of the order.Q5. Can you customize the products to meet my requirements?A: Yes. We have a professional R&D team, and we can produce products exactly as you require.Q6. What is the price of your products?A: We are factory direct sales, so the price is very competitive. Different products have different prices. The price
also depends on your special needs. To know the exact price, please contact us!Q7. Do you test all the goods before delivery?A: Yes, we do 100% testing before delivery.Q8. What service can I get from you?A: We provide lifetime tracking service and a one-year free warranty for all our products. At the same time, we provide free training and technical support to guide you to repair the product. We will also provide original spare parts if necessary, and you only need to pay the shipping cost.

---
