Z5035 type China supplier of cheap vertical drilling machine

Product Description

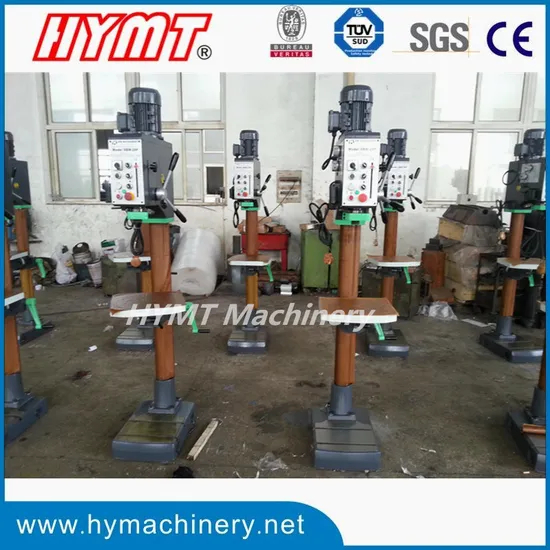

Vertical drilling machine Z5035
The Drilling Machine Z5035 is equipped with:Auto spindle power down feeder,cooling system,Working light,Big Viceworktable,2step motor with 12 steps speed which can improve the machining accuracy and producing efficiency
• Drilling, tapping, boring, reaming ;
•Strong column,Vice table,Gear drive, lower noise.;
•Heavy-duty tapered roller bearing spindle,Positive spindle lock.

Item	Parameter
Max.drilling capacity(iron/steel)	40/35mm
Max.tapping capacity(iron/steel)	24/22mm
Spindle taper	MT3/MT4/R8/ISO30
Worktable size	500×360mm
Dimensions of base	670×470mm
Spindle travel	130mm
Spindle center to column surface	320mm
Spindle nose to worktable	685mm
Spindle nose to base	1140mm
Column diameter	125mm
Max. swivel angle of table	±180°
Spindle speed (2 step motor)	12steps:75-3200r/min
Spindle feed range	0.1/0.18/0.26 (per/rev)
Vices on tableback	100mm
Cooling motor	60W
Motor	1.5kw
Machine weight (Net/Gross)	430/480KG
Packing size(L×W×H)	570×810×2110mm

Standard Accessories	Optional
Adaptor, Drilling chuck, Elevating lever, Oil gun, Screw, Washer, Spring washer, Nut, Double-ended spanner, Spanner	depth indicator

Our services:
1.Standardization of Service "212"
2: response in 2 hours
1: provide solution in 1 day
2: solve complaint in 2 days
2.Installation Service
Installation Services are available with all HYMT machines. We dispatch technician to customer's
factory for installation and preoperation of machines.
3.Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you
may send your technician to our company to learn how to operate machines.
4.Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.
We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments.

---
