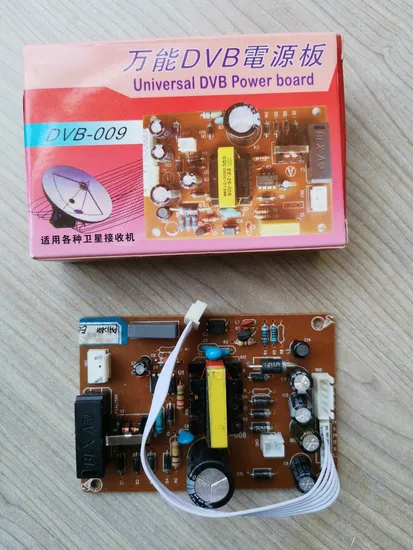

Universal DVB Power Board DVB-009 for Receiver

Product Description

Universal DVB Power Board DVB-009
Used for all kinds of Satellite Receiver
Port Voltage and Current Parameters

Rated Voltage	5V	12V	3.3V	3.3V	5V	24V	12V	3.3V
Deviation Range	±3%	±1V	±0.2V	±0.2V	±3%	±3V	±1V	±0.2V
MAX Current	1A	0.2A	1.5A	1.5A	1A	0.35A	0.2A	1.5A
Rated Current	0.15A	0.15A	1A	1A	0.15A	0.25A	0.15A	1A
Slope Voltage	50mV	100mV	40mV	40mV	50mV	200mV	100mV	40mV

Input Voltage:80-265V AC.47-63HZ
Size of product: 9.7*6.5cm
200pcs/master carton
Size of carton: 32*41*36cm
G.W/N.W: 13/12KGS

---
