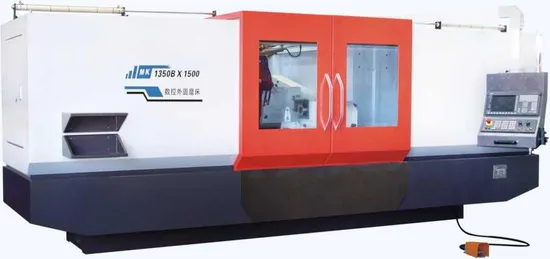

M1350b CNC Cylinderical Grinding Machine. M1450b CNC Universal Cylindrical Grinding Machine

Product Description

Product Description
Main functions and features
• M1350B(MK1450B) cylinfrical grinding machine is designed for grinding cylindrical or taper surface of rotation! parts. It is highly adaptable for single and small batch production.
• The table traverse is actuated by hydraulic means at infinitely variable speed or operated by hand.
• The grinding wheel spindle is supported by three tilting segmented shoes.
• The system uses double channel control path,enabl ingsimultaneous.
• Grinding products and robotic hangling products,improveprouduct cyceltimes.
Product Parameters

Description	(unit)	MK1350B	MK1450B
Max. dia. to be ground	mm	500	500/200
Max. length to be guound	mm	1500,2000,3000,4000	1500,2000,3000,4000/320
Max, workpiece weight	kg	1000	1000
	mm	φ750×75xφ305	φ500×75xφ305
Wheelsize (O.D,xWxl. D) Wheel spindle rotation speed	r/min	892	1338
Center height	mm	270	270
Max,worktab e traverse	mm	1500,2000,3000,4000	1500,2000,3000,4000
Max. worktable travel speed	m/min	10	10
Wheel peripheral speed	m/s	35	35
Tailstock center	()	6#	6#
The X axis minimum pulse equivalent	(mm)	0.001	0.001
The Z axis minimum pulse equivalent	(mm)	0.001	0.001
Coolant flow	L/min	50	50
Total motor power	KW	20.63	14.08
Machine weight(net weight)	kg	8400,9700,11200,12800	8600,9900,11350,13100
Overalldimensions(Lx Wx H)	mm	(1500)5320x2140x1550 (2000)6090x2140x1550 (3000)10240x2140x1550 (4000)12280x2140x1550	5320x2680x1560 6090x2680x1560 10240x2680x1560 12280x2680x1560

Detailed Photos

---
