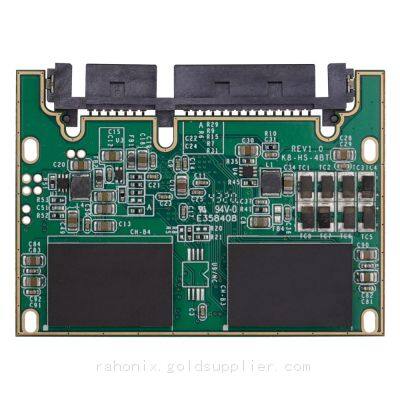

RSHS Series 1.8” SATAIII SSD

Product Details

Product Description

Product Description
OverviewRSHS-XXX is a well-balanced SATA SSD with standard form factor(1.8" SATA half size) and great performance. Designed in SATA 6 Gb/s interface, the SSD is able to deliver exceptional read/write speed, making it the ideal companion for heavy-loading industrial or server operations.
RSHS-XXX utilizes 2D NAND and capacity range is 8GB~256GB, the drive comes with various implementations including powerful hardware ECC engine, power saving modes, wear leveling, flash block management, S.M.A.R.T. and TRIM
FeaturesInterface：SATA3.0(6Gb/s)
Low-Density Parity-Check (LDPC) Code
Global Wear Leveling
Flash bad-block management
Flash Translation Layer: Page Mapping
Support S.M.A.R.T.
Support TRIM
Specifications

Product Model	RSHS-XXX
Flash Type	MLC
Capacity	8GB~256GB
Sequential Read	Up to 550MB/s
Sequential Write	Up to 300MB/s
4K Random Read	21700 IOPS
4K Random Write	22000 IOPS
Operating Temperature	-20°C ~ 70°C, -40°C ~ 85°C
Storage Temperature	-55°C ~ +95°C
Humidity	5%-95% RH non-condensing
Shock	1500G/0.5ms
Vibration	80Hz~2000Hz/20G
Operating Voltage	DC 5V±5%
Power Consumption（MAX）	2.06W
Dimensions	L54.0mm*W39.0mm*H4.5mm ±0.15mm
MTBF	2 million hours

ApplicationsEmbedded/Lottery/Vehicle/Automation/AIOT

---
