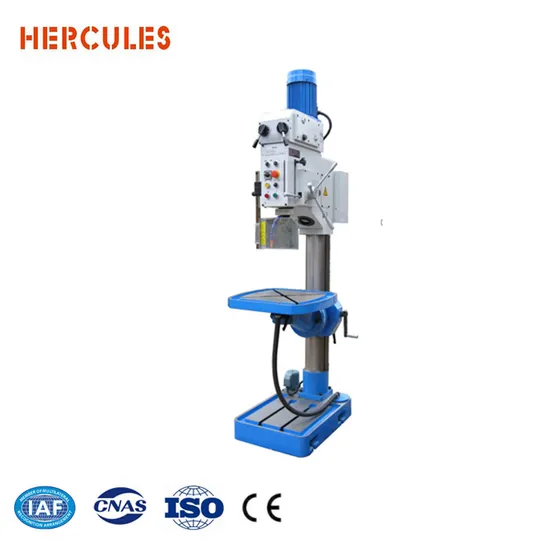

Z5040 Taladro Vertical Drilling Press Fresadora Milling Tapping machine

US$2,000.00-4,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

Z5040

Hole Diameter

<50mm

Automatic Grade

Manual

Precision

Certification

CE, RoHS, ISO 9001

Condition

New

Transport Package

Wood Pallet

Specification

2270*690*1100mm

Trademark

HERCULES OR OEM

Origin

China

HS Code

8459290000

Production Capacity

3000 PCS/Month

Product Description

Model	Z5040
	Geared head vertical drilling machine
Max. drilling dia	Φ40
Distance from spindle nose to table surface	770
Distance between spindle axis and column surface	350
Spindle travel	180
Spindle cone	4
Spindle speed range	50-1450rpm
Spindle feeding range	0.10-0.20
Spindle feeding step	2
Main motor power	0.85kw/1.5kw
N.W/G.W	465kg/510kg/615kg/650kg
Overall dimension	2270x690x1100
Hercules Machinery Equipment Ltd.

Optional Accessories:
Optional power feed for Z5040: Z5040E electronic power feed; Z5040T Machinery power feed; Z5040ET Electronic power feed
Pictures for reference only:
