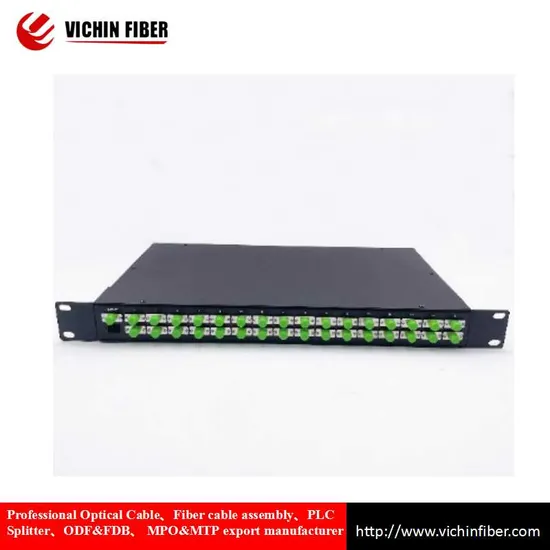

19inch 1u 1X32 Fiber Optic FC/APC Rack Mount PLC Splitter

US$15.00 100 Pieces (MOQ)

Basic Info.

Model NO.
1X32 Fiber Optic FC/APC Rack Mount PLC Splitter
Certification
CE, ISO, RoHS, GS
Condition
New
Connector
FC/APC
Transport Package
Carton
Specification
piece
Trademark
VICHIN
Origin
China
HS Code
8517622990
Production Capacity
50000 Pieces/ Month

Product Description

1X32 Fiber Optic FC/APC Rack Mount PLC Splitter
--- Product Description ---
Product Name: optical fiber Rack Mount PLC Splitter

Place of Origin:
Zhejiang, China
Use: CATV/FTTH
Length 1M, 2M, 3M or as your request
Cable Sheath PVC
Cable Diameter 0.9/2.0/ 3.0 mm
Warranty 10-30 years
Product Description
PLC splitter is the planer wavelength integrated optic device which based on the quartz substrate, with small size, wide-field operation wavelength and high reliability and high splitter ratio features. Our company can manufacture the 1*N and 2*N all series products, and can be customized according to customer requirements in different situation.
Specification
Parameter/Type Nx2(N=1or2) Nx4(N=1or2) Nx8(N=1or2) Nx16(N=1or2) Nx32(N=1or2) Nx64(N=1or2)
Fiber 9/125 um SMF-28e or customer appoint
Operating Wavelength(nm) 1260~1650(nm)
Insertion Loss ≤3.9dB ≤7.1dB ≤10.3dB ≤13.3dB ≤16.3dB ≤19.8dB
Loss Uniformity(dB) ≤0.6dB ≤0.6dB ≤0.8dB ≤1.2dB ≤1.5dB ≤2.0dB
Polariation Dependent Loss ≤0.15dB ≤0.15dB ≤0.2dB ≤0.2dB ≤0.2dB ≤0.3dB
Return Loss UPC≥50dB APC≥60dB
Directivity ≥55dB
Working Temperature(ºC) -40°C to +85°C
