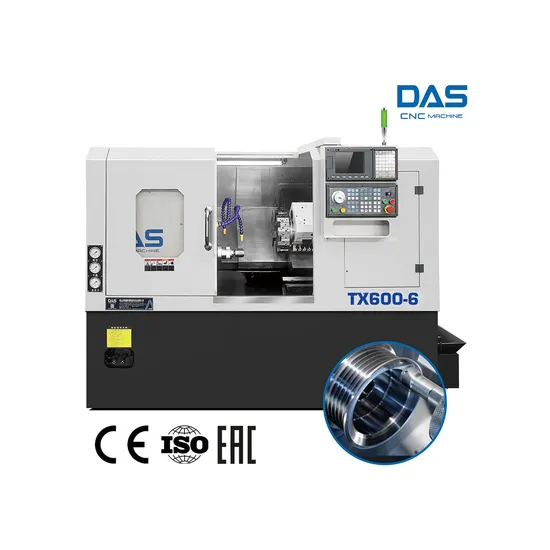

Das 3-Axis CNC Turning Center with Driven Tool Turret Vdi30/Bmt45 Slant Bed Lathe

Product Description

Product Description

Condition:	New
Type:	Turret Lathe With Tailstock
CNC or Not:	CNC
Automatic Grade:	Automatic
Control system:	TaiWan Syntec
Tailstock:	YES
Place of Origin:	China (Mainland)
Brand Name:	DAS
Model Number:	TX600-6
Max. swing diameter(mm):	520
Center Height of the turret(mm):	80
Max. turning diameter(mm):	450
Max cutting length (mm):	450
Spindle nose(mm):	A2-5(6 inch)
Spindle bore(mm):	Φ56
Max. pass bar diameter(mm):	Φ45
Spindle motor power(kw):	7.5
Spindle speed (r/min):	0-4500
X/Z axis moving speed(m/min):	X:26/Z:26
X/Z axis travel(mm):	260/430
Tool installation:	BMT45 12 station turret
Square tool holder(mm):	25*25
Round tool holder(mm):	Φ32
Tail-stock travel(mm):	360
Machine power(kw):	16.3
Net weight(kg):	3800
Pump motor power (kw):	0.75
Dimension(L*W*H)(mm):	2800*1550*1800

Company Profile
FAQ
A:How can I choose the most suitable machines ?
B: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
A: What's your main products of your company?
B: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe
A: Where is our factory located? How can I visit there?
B: Our factory is located in No.4-7 Xingye 3rd Road,Guangdong Industry Park,Chencun Town,Shunde District,Foshan City,Guangdong,China You are warmly welcomed to visit us.

A. What is your trade terms?
B: FOB, CFR and CIF all acceptable.

A: What's the Payment Terms ?
B : T/T ,30% initial payment when order ,70% balance payment before shipment
A: What's the MOQ?
B: 1 set .(Only some low cost machines will be more than 1 set )

---
