High Precision Heavy Duty Metal Slant Bed CNC Lathe Stc5052D

Product Description

Product Parameters

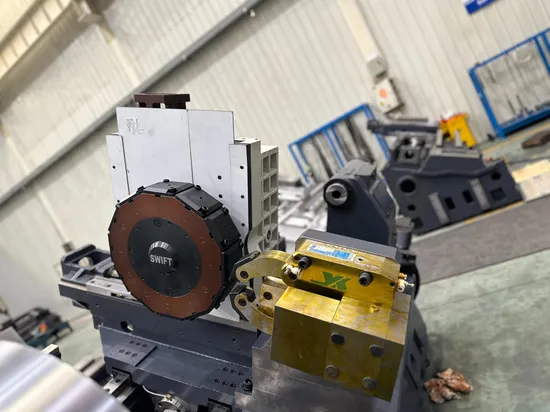

The STC5052D slant-bed CNC lathe features a one-piece cast bed and slant guide rails for excellent rigidity and vibration absorption,ensuring high-precision cutting.It uses an AC servo motor with a V-belt direct drive spindle for low noise.The spindle has precision high-speed bearings and a box-type support for high-speed operation.Equipped with a multi-position or powered turret, it can machine complex parts like cylinders,threads,slots,and worms,offering linear and arc interpolation for mass production.An optional high-rigidity hydraulic servo turret provides greater reliability and repeatability.

ITEM		UNIT	STC5052D
Maximum rotation diameter on the bed		mm	φ500
Maximum turning diameter on the slide		mm	φ300
Spindle	Spindle end type		A2-8
	Spindle through hole diameter	mm	φ82
	Maximum spindle speed	r/min	1600
	Diameter of the through hole of the drawn tube	mm	φ68
	Chuck	inch	10
Main motor	main motor power	kw	15
Two Axis	X/Z axis fast moving speed	m/min	15/20
	X-axis travel	mm	380
	Z-axis travel	mm	550
Tool holder	Tool holder form		Four workstations
	Knife Square	mm	25*25
	Tool bar diameter	mm	φ32
Accuracy	Precision		It6
	Roundness of workpiece	mm	0.005/φ70
	Processing surface roughness	um	Ra1.6
	X/Z repeat positioning accuracy	mm	0.01/0.011
General Rules	Machine net weight	kg	2800
	Machine tool dimensions	mm	2680*1695*1800

---
