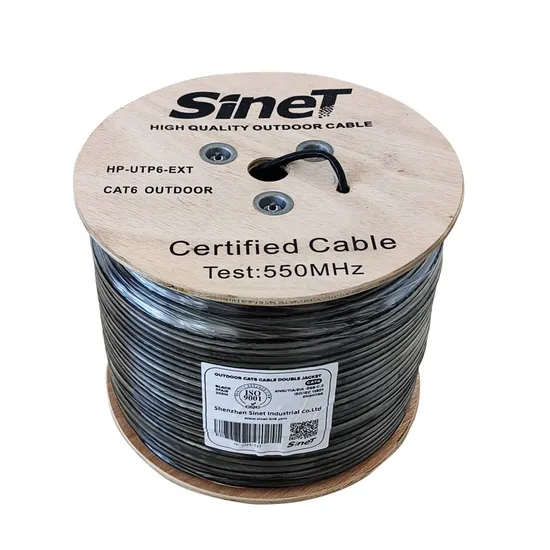

Outdoor CAT6 Ethernet Cable - Premium Quality, Solid Bare Copper, 305m/Roll

Product Description

Product Description SINET focus on OEM cable manufacturing more than 20+ years, committed to continuous production process and constantly meet customers' cabling needs.
Based on the needs of different OEM customers, we have developed four series of Networks cables.
1, E Series(Economic), Meet most cabling requirements, choose CCA conductor, working distance 100-120M for Networking Cabling. support 10-100Mbps, Good performance on CCTV Camera
2, B Series(Basic performance), Meet gigabit cabling standards,Choose Pure Copper Conductor, working distance more than 200M for Networking Cabling, support 10-100-1000Mbps, Better performance on CCTV Camera
3, HE Series( High quality Economic), Choose High quality CCA, and better HD-PE material import from America 3364, Korea 8380, Compared with B and E series, HE series has improved the material and production process, added two processes of untwisting and total Twisting, which Improved signal attenuation and Crosstalk, and improved performance
4, HP Series(Highest performance), Compare with HE series,Highest performance cable all choose Pure Copper, and Imported insulation , Jacket materials. This is for customers who have very high requirements for cabling, Fully satisfied Gigabit and 10-Gigabit cabling requirements.

Model	E-UTP6-EXT-D	B-UTP6-EXT-D	HE-UTP6-EXT-D,HE-UTP6H-EXT-D	HP-UTP6-EXT-D
Quality series	Economical	Basic	High quality Economical	High Quality Performance
Flu ke Pass	Not	Not	Yes	Yes
Shield Type	UTP, Unshielded
Conductor	CCA	Bare Copper	CCA,HCCA	Bare Copper
Copper Content	25%	100%	30%,50%,60%,80%	100%
Conductor size	23AWG ( Customized)
Conductor resistance	23Ω/100M	7Ω/100M	CCA 16Ω/100M / HCCA 11Ω/100M	7Ω/100M
Network working distance	≤100M	≥200M	≤120M, ≤180M	≥200M
IP camera working distance	≤80M	≤150M	≤110M, ≤160M	≥160M
OD	7.0±0.02mm
Packing	100M ,305M/Pull Box,500M/wooden drum
Color	White,Blue, Grey,Black,Orange,etc. Optional

For more details, you can contact us to get the price and quality difference of each serie.
