Manufacturer OEM 60 to 120 Tons Electronic Weighbridge Weight Machine Weigh Bridge

Product Description

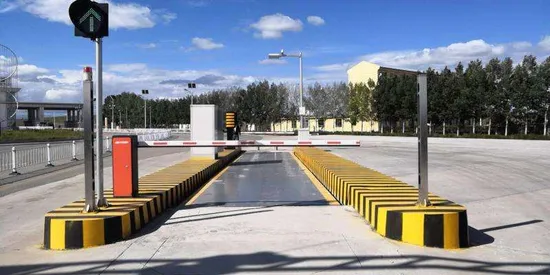

Product Description The digital electronic truck scale is a fully electronic modular truck scale designed using the world's most advanced digital load cells and digital weighing display instruments. The digital load cells use digital technology and can control temperature coefficients, non-linearity , hysteresis and creep, etc. are automatically digitally compensated. The weighing instrument has rich functions and strong storage function: the scale platform adopts bridge-type structure welding, and the overall stiffness, torsion resistance performance and local stiffness of the table have been greatly improved: the scale platform design is modular, standardized and serialized, and can be freely Combined into various specifications. The system design has the function of preventing secondary lightning strikes. The entire truck scale system has strong environmental adaptability, superior measurement performance, high accuracy, good long-term stability, and easy installation, debugging and maintenance. It has anti-interference, self-calibration, self-diagnosis, anti-cheating and other functions. Widely used in metallurgy, mining, machinery, chemical industry, ports and highway cargo stations and other industries.

Model			SCS-30	SCS-40	SCS-60	SCS-80	SCS-100	SCS-120	SCS-150	SCS-200
Max.capacity(t)			30	40	60	80	100	120	150	200
Division value d(kg)			10	10	20	20	50	50	50	50
Load cell capacity(t)			20	20	20	30	30	40	40	50
Scale body size: W*L(m)			Preferred specification
2*6	2.2*6
2.4*6	2.5*6
3*7	3*8
3*10	3*12
3*14	3*15
3*16	3*17
3*18	3.2*18
3.2*20	3.4*21
3.4*24	3.5*24
4*12	4.5*18
Remarks: Truck scales of various sizes and specifications can be customized according to client's requirements.

SIMPLE STRUCTURE DIAGRAM OF TRUCK SCALE Structure There are two types of scale body structures. One uses channel steel and plates integrally welded into a grid-like box structure; the other uses U-shaped beams and plates integrally welded into a sealed cavity-shaped structure. Features 1. The scale body has high strength, small deformation, low slope height, and is easy to install, debug and maintain. 2. It can weigh statically and dynamically. The static accuracy reaches the national standard level three, and the dynamic accuracy reaches level 0.2.

Width	2m, 3m, 3.2m, 3.4m, 3.5m, 4m, 4.5m
Length	6m,7m,8m,9m,10m,12m,14m,16m,18m,20m,21m,22m,23m,24m
Power supply	110V±10%220V±10% AC or DC,50 or 60Hz
Accurancy class	OIML(III)
Capacity range	10~150TON
Safe overload	150%
Material	Q235steel
Thickness of plate	8~20mm
Structure	6mm U-shaped beams
Painting	Anti rust and anti corrsion
Quality system	ISO9001:2020
Certificate	CE
Packing details	In 20"or 40" container,modules of weighbridge platform are fastened by bolts;indicator,load cell and other accessories are packed in cartons.

High strength steel plate Thickness of 10mm, 12mm, 14mm, 16mm
or customized
Chequer plate optional
Safety load: 150%
U-shaped beam structure Thickened U shape beams, each equipped with 6pcs, and 1 in middle specially for exporting Super heavy double U-shaped beam structure In the large U-shaped beam, add a layer of small reinforced U-shaped beam, welded into a double-layer combined structure, and are fully welded into a whole with the panel. The steel strength of the scale body is greatly enhanced, the service life is extended, and the precision of the scale and the stability of long-term use are guaranteed. Digital indicator HR-Y weighing indicator, widely used.
AC, DC can be used, simple maintenance, strong anti-jamming Optional equipment: computer + printer ZEMIC brand load cell is used With high accuracy, good longterm stability.
Each equipped with 4pcs, 6pcs, 8pcs, 12pcs load cell depend on size "Professional Design, Advanced Technology, Reliable Quality" is our promise to clients. Hener sincerely invites you to cooperate with us and develop business together. Cutting Welding Spray painting Assambing & inspecting Finished packing Delivery & shipping Delivery time: 10-15 working days after receiving the down payment Our Projects Our Services Our services Pre-sale Service
1. Answering customers' questions, helping customers choose the most suitable machines;
2.Making design drawings as per customers' requirements;
3. Providing quotations.
In-sale Service
1. Strictly control all procedures from raw materials sourcing to pre-assembly to ensure product quality;
2. Regularly updating production progress to clients;
3. After the production is completed, pre-assembly and test running will be carried out to make sure our machine works well;
4. Proper packing to minimize the risk that the machines are damaged during transportation;
5. Foundation drawing will be provided for clients to make the foundation in advance.
After-sale Service
1. Providing 7 * 24 hours online after-sales service every week;
2. Providing related certificates, customs clearance documents, operation and maintenance instructions, installation videos, etc.
3. Arranging engineers to go to the client's job site. The engineers will help clients with the machine installation, machine test-running, and operators' training, etc.
4. Spare parts supply;
5. Job site visiting every year.

---
