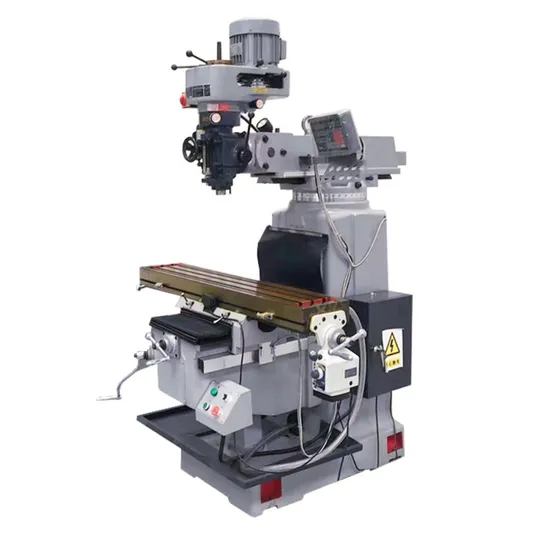

Dovetail Slider Dual Spindle 4hw Turret Milling Machine with Wholesale Price

Product Description

Product Description
FEATURES
1.The slider adopts dovetail for more stability.
2.Large workbench area and wide working range.
3.Taiwan screw and easy to operate.
4.No. 4 turret milling head from Taiwan.
5.The base and bed are integrally cast for greater rigidity
The base and bed of the turret milling machine are integrated, strong rigidity;
The turret milling head can reach more than 4540 revolutions, with higher precision;
The spindle can feed automatically and can rotate left and right, front and back respectively

Detail display
Digital display(DRO) (Additional) Worktable The head
Optional types(vertical&horizontal spindle)

Product Parameters

Specification	4HW turret milling machine
Bench size(mm)	1370×350
Table travel(mm)	770-850
Table lateral travel(mm)	380-420
Vertical travel(mm)	400
Number and size of T-groove (mm)	3X16
Telescopic arm stroke (mm)	400
Distance between spindle end and bench(mm)	540
Spindle taper	VerticalR8 horizontal ISO40
Accuracy (mm)	0.01
The milling head rotates left and right	90°
Spindle speeds range(r.p.m)	Vertical 60-4540(16steps) Horizontal 40-1350(12steps)
Rotary angle of the head	±45°
Main motor power(Kw)	Vertical 2.2 horizontal 3
Overall dimensions(mm)	1800×1780×2350
Net weight (kg)	1400
