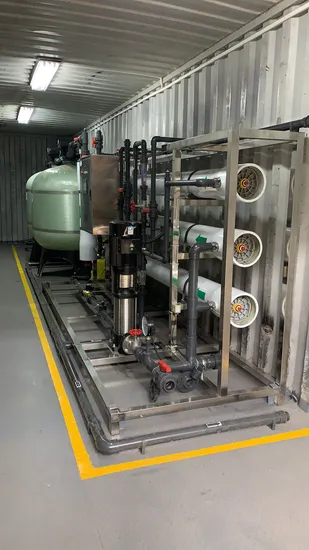

15tph Portable Containerized Water Treatment Reverse Osmosis System Portable Purifier Large-Scale Water Softener

Product Description

15TPH Portable containerized water treatment Reverse osmosis system portable purifier large-scale water softener
What is Reversed Osmosis?
Reverse osmosis (R.O.) water purification plant is one of the most advanced technologies to purifier water by using the pressure difference of semi permeable/reverse osmosis membranes to purify. RO system is the core components of pure water filtration plant. It is effective to remove asbestos, many taste, color, odor producing chemicals, particulates, calcium,magnesium, bacterials, turbidity and radium etc.Thus, it can purify underground water, tap water, lake, river, seawater, blackish water etc, and widely be used in food&beverage,pharmaceutical,chemical industry, electronic industry etc.
XST reverse osmosis water treatment system uses pre-treatment device, including quartz sand filter, activated carbon filter, water softener, security filter and RO reverse osmosis system, with the multiple filtration and separation of water ion technology, the salt and bacteria removal rate can reach 97%-99%, thus providing safe and pure water

Name	Capacity(Tons/Hr)	Operation (Mpa)	Feed Inlet (MM)	Membrane Size ( Inch)	Recovery	Power(KW)
XSTRO-250L	0.25	1.0-1.4	DN20	40*40	50%	1.1
XSTRO-500L	0.5	1.0-1.4	DN20	40*40	50%	1.5
XSTRO-750L	0.75	1.0-1.4	DN25	40*40	60%	2.2
XSTRO-1000L	1.0	1.0-1.4	DN25	40*40	60%	2.2
XSTRO-1500L	1.5	1.0-1.4	DN25	40*40	60%	3.0
XSTRO-2000L	2.0	1.0-1.4	DN25	40*40	60%	3.0
XSTRO-250LDP	0.25	1.0-1.4	DN20	40*40	50%	2.6
XSTRO-500LDP	0.5	1.0-1.4	DN25	40*40	50%	3.7
XSTRO-1000LDP	1.0	1.0-1.4	DN25	40*40	60%	5.2
XSTRO-2000LDP	2.0	1.0-1.4	DN25	40*40	60%	7.0
XSTRO-3	3.0	1.0-1.4	DN32	40*40	70%	4.0
XSTRO-6	6.0	1.0-1.4	DN40	80*40	70%	5.5
XSTRO-10	10.0	1.0-1.4	DN50	80*40	75%	11
XSTRO-15	15.0	1.0-1.4	DN50	80*40	75%	15
XSTRO-20	20.0	1.0-1.4	DN65	80*40	75%	18.5

Reverse osmosis(RO) system
Reverse Osmosis (RO) Membrane
Reverse osmosis process is the world's advanced, energy-saving and effective separation technology now, with a filtration accuracy of 0.001 μm, to completely separate and remove all particles of soluble salts, colloids, organics, microorganisms, viruses,bacteria, rust, and heavy metals in water. It requires pressure to force pure water across a membrane, leaving the impurities behind.
However, note that reverse osmosis systems are not ideal for treating water that is very hard and/or with significant quantities of contaminants. In this case, to extend the operating life of the membrane, the water should be pre-treated before entering reverse osmosis membranes (filtering, deferrization, etc.).

S/N.	Process	Application
1	Raw water tank	Store water, buffering pressure, overcome instability of supplying water by pipe, ensure to supply water stably and continuously for whole system. (Customer provide, because big size will result in expensive freight.)
2	Raw water pump / booster pump	Provide needed pressure for the pretreatment filters
3	Quartz sand filter/Mechanical filter	FRP or stainless steel vessel as housing, fill quarts sand, it can filter big particles impurities, suspended substances, colloids etc.
4	Activated carbon filter	FRP or stainless steel vessel as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances.
5	Anti-scale dosing system	To add chemicals to remove some impurities and prolong thememebranes using/washing time(prevent membrane blocking)
6	Security filter /PP filter	Prevent large particles, bacteria, viruses into RO membrane, accuracy is 5μm,
7	High pressure Pump	Provide needed working pressure for RO system, ensure production capacity of pure water. (CNP pump or customer-specified)
8	Reverse osmosis(RO) system	Can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts. (RO membranes USA Filmtec, Toray, LG,Vontron or customer-specified)
9	Electrical Control Cabinet	Automatic control, Relay /PLC/HIM as optional

Q1:Why I choose your company?A1: Our factory has professional technical team and advanced production line.
100% factory quality assurance, 12 months warranty and lifetime maintenance;Q2. Which machine should I choose?A2: It depends on your inlet water quality and output water requirements, we have professional sales team and engineers team, welcome to inquiry.Q3.: The logo, language and color can be customized?A3: Yes, welcome you to sample custom, and also can provide the pictures or requirements for design.Q4: Could you provide the picture and video for our retail advertising?A4: Yes, high-definition pictures will be provided which can be used for your clients, your online shop or official website;Q5: Do you provide installation and training?A5: Yes, synchronous drawings and operation manual will be provided, and also we can send our technician to your site for
installation or training if necessary.

---
