Basic Info.
Carrying Capacity
Light Level
Certification
GS, CE, SGS
Standard
National Standards
Surface Treatment
Powder Coated
Brake
Winch Automatic Bake
Transport Package
1PCS/Polybag/Color Box/Carton
Specification
48x30x21(cm)
Production Capacity
50000sets/Year
Product Description

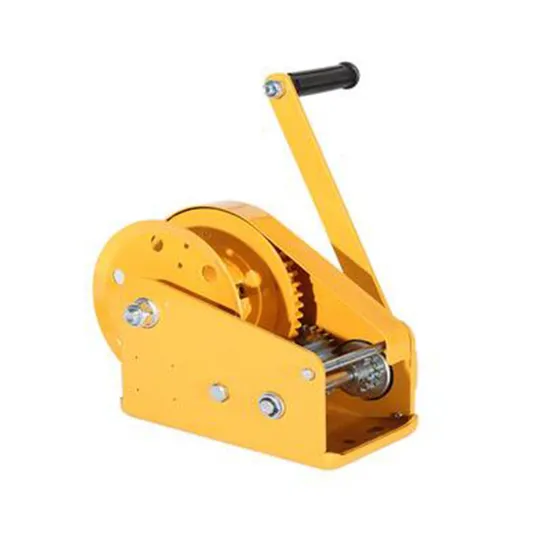

More Model options for Brake Winch:
| Item No. | Rated Capacity(KG) | Max Capacity(KN) | Cable Size(Dia.x L) | Strap Size(Dia.x L) | Gear Ratio) | Pcs/Carton | Packing Size(cm) | N.W(one pc) |
| SC1200 | 550 | 8 | 4.5mmx10m | 50mmx7m | 4.2:1 | 6 | 51*36.5*25.5 | 3.8kg |
| SC1800 | 800 | 12 | 5.0mmx10m | 50mmx10m | 5.0:1 | 4 | 40.5*33*45 | 8.1kg |
| SC2600 | 1100 | 17.5 | 5.5mmx10m | 50mmx10m | 10.0:1 | 4 | 42.5*31*48.5 | 10.3k |
| Sc3000 | 3000 | 17.5 | 5.5mmx10m | 50mmx10m | 10.0:1 | 4 | 42.5*31*48.5 | 10.3kg |
Features
1.large drum hub to maximize cable life.
2.self-activating automatic brake hold the load securely when crank handle is released
3.With cable or strap.
4.safety guard cover available
5.Top quality with competitive price.
6.Widely used in the double beam bridge crane and gantry crane
7.Easy to install and high quality.
8.Compact structure and reasonable design.
Product Categories:
Our specification and Parameters Table:
| SPECIFICATION |
| Item No. | Rated Capacity | Max Capacity | Cable Size(Dia.x L) | Gear Ratio) | Pcs/Carton | Packing Size | G.W/N.W |
| KC500 | 220 | 330 | 3.0mmx8m | 3.1:1 | 12 | 40*36.5*29.5 | 25/24kg |
| KC600 | 250 | 375 | 3.8mmx10m | 3.2:1 | 8 | 48*29.5*21 | 21/20kg |
| KC800 | 350 | 525 | 4.0mmx10m | 3.2:1 | 8 | 48*29.5*21 | 21/20kg |
| KC1000 | 450 | 675 | 4.2mmx10m | 4.1:1 | 6 | 39*22.5*34 | 22/21kg |
| KC1200 | 550 | 825 | 4.5x10m | 4.1:1 | 6 | 39*22.5*34 | 23/22kg |
| KC1600 | 700 | 1050 | 4.8x10m | 4.1:1 | 6 | 39*22.5*34 | 24/23kg |
| KC1800 | 800 | 1200 | 5.0x10m | 4:1/8:1 | 4 | 48*35.5*19 | 19/18kg |
| KC2000 | 900 | 1350 | 5.0x10m | 4:1/8:1 | 4 | 48*35.5*19 | 20/19kg |
| KC2500 | 1100 | 1650 | 5.0x10m | 4:1/8:1 | 4 | 48*35.5*19 | 21/20kg |
| KC3000 | 1365 | 2045 | 5.0x10m | 4:1/8:1 | 4 | 52.5*33.5*20 | 22/21kg |
| KC3500 | 1600 | 2390 | 6.0x10m | 4:1/8:1 | 4 | 52.5*33.5*20 | 23/22kg |
