Bcmc Machinery a Frame Cart Stone Tile Display Rack Granite Slab Transport Racks for Warehouse Storage

US$700.00-950.00 1 Set (MOQ)

Basic Info.

Model NO.

HSE-24

Type

Movable Storage Cage

Size

2200X1100X1800

Load Capacity

2.2t

Folded

Unfolded

Mesh Spacing

None

Wire Diameter

None

Feet Height

Customized

Scale

Medium Duty

Wire diameter

None

Welding

Full Welding

Shape

a Frame

Function

Stone Slab Storage and Transport

Material

Steel

Core Components

Wheel

Applicable Industries

Building Material Shops, Manufacturing Plant

Transport Package

Plastic Packing

Specification

As required

Trademark

BCMC

Origin

Putian, Fujian, China

HS Code

9003110000

Production Capacity

5000 Pieces/Month

Product Description

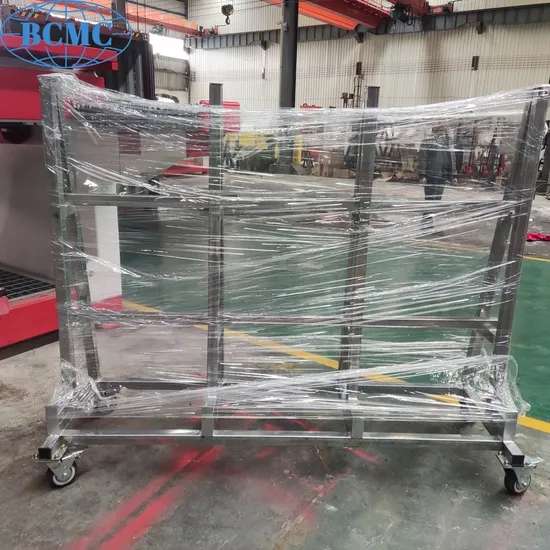

BCMC HSE-24 series sturdy Racks are designed for slab store and transport. Easy for moving the slabs of stone, glass or the countertops. Also, it can be used for slab store and display.
Main Features: * It can be lifted by forlift in each side of the A frame.
* The bottom and back supports are mounted with rubber strips to prevent slippage and scratches.
Parameters:

Model		HSE-24A	HSE-24B
Dimensions LxWxH	mm	2200x1100x1800	2800x1200x2300
Wheel Size	mm	20	20
Static Load Bearing	ton	2.2	2.7
Moving Bearing	ton	2.0	2.2
Slab Height allowed	mm	1350	1850
Package Size LxWxH	mm	2200x1100x400	2800x1200x400
Net Weight	kg	230	265

Application:
* Slab moving
* Slab display
* Slab storage
* Slab transport
