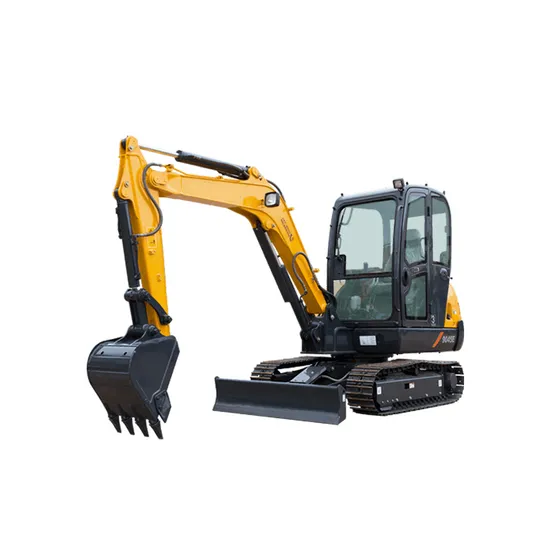

| Item | 9045E |
| Machine weight | 4000 kg |
| power | 27.2kW@2200rpm |
| Standard bucket capacity | 0.12 m³ |
| engine model | 4TNV88 |
| Emission standard country three | National Three |
| Type | 4-cylinder in-line, water-cooled, direct injection |
| Rated power (rated speed) | 27.2kW@2200rpm |
| Net power (rated speed) | 25.2kW@2200rpm |
| Maximum torque (torque/speed) | 141.7/1320 N·m |
| cooling method | Water cooling |
| High/low driving speed | 4.4~2.7 km/h |
| Swing speed | 11.1 rpm |
| Gradeability | 30 ° |
| Ground pressure | 37 kPa |
| Stick Rated/Pressurized Digging Force (ISO) | 17.6 kN |
| Bucket rated/pressurized digging force (ISO) | 28.3 kN |
| Long (transport state) | 5150 mm |
| Overall width (standard track configuration) | 1600 mm |
| High (transport state) | 2500 mm |
| Minimum ground clearance | 320 mm |
| Wheelbase of chassis | 1620 mm |
| Underframe gauge | 1300 mm |
| Track width (standard) | 300 mm |
| Maximum digging height | 5000 mm |
| Maximum digging radius | 5350 mm |
| Maximum digging depth | 3100 mm |
| Maximum unloading height | 3600 mm |
