X8140 Unversal Tool Milling Machine with Dro OEM China Xili

Product Description

Product Description
XL8140 Universal Milling Machine
1. High flexibility, designed with flexible modules.
2. High accuracy, variable spindle speeds in 2 steps
3. Ballscrews on X,Y and Z axes.
4. High efficiency, centralized operation panel and E-handwheel or AUTO operation.
5. CNC is optional accessories.

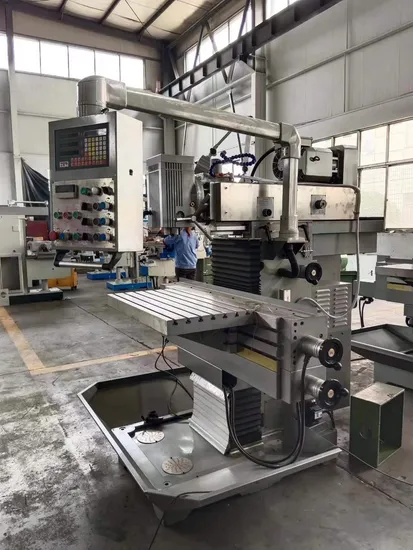

Detailed Photos
Product Parameters

Specification	Unit	XL8132	XL8140	XL8145
Horizonal table size(L*W)	mm	750*320	800*400	850*450
T-slots	mm	5*14*63	6*14*63	7*14*63
Vertical table size	mm	890*225	1020*225	1190*250
T-slots	mm	3*14*63	3*14*63	3*14*63
Max. table load	kg	160	200	300
X/Y/Z axes travel	mm	405/305/400	500/400/400	600/450/450
Spindle taper		NT40	NT40	NT40
Spindle speeds	r.p.m	40-2000	40-2000	40-2000
stroke of vertical spindle quill	mm	60	60	60
Feed rate	mm/min	10-1000	10-1000	10-1000
Rapid tracerse	mm/min	1200	1200	1200
Main motor power	kw	3.7	3.7	5.5
Feed motor torque	Nm	7.7/7.7/10	7.7/7.7/10	10/10/15
Machine Weight	kg	1450	1550	1750
Dimensions	mm	1500*1700*1800	1500*1700*1800	1600*1800*2000

Certifications
We have 68 patents and all of our products have got the CE,TUV,SGS,ISO9001/9002 and other authority approved.

Packaging & Shipping
standard export packing:
plywood case with steel pallet, inside with plastic bag on machine.
Steel pallet:
1.strong carring capacity
2.Eco-friendly and recyclable
3.Standard export package, fumigation-free
4.Flexible and convenient for transportation

Company Profile
Tengzhou Xili Machine Tool Co., Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. Our company is located in the scenic hometown of Mozi who is the famous thinker in ancient China.

It covers an area of about 20000 square meters. Our fixed assets are 20 million RMB. There are 430 workers, including 132 technicians. We are equipped with 18 sets of precision processing machines and 260 sets of testers. Our company is a high tech enterprise for strong technical strength. With business management standardization and perfect sales and after-sales service, we have established the best brand of "YOU RONG XI LI".Our main products include vertical milling machines, horizontal milling machines, universal milling machines, planer type milling machines, RAM type milling machines and vertical drilling machines with all 30 categories.
In 2003, we attained ISO9001 quality guarantee system certification. With more than 10 years′ history of milling machine production, we have advanced technology and rich managing experience. Our milling machine was ranked the first place in China. We are capable of designing and manufacturing special machine tools which sell well all over country and are exported to the USA, Germany, Britain, Southeast Asia, the Middle East and Africa.Our company insists on "professional services and creating value for customers". We provide high quality products, reasonable prices, satisfactory service and timely delivery. We are welcome all customers from at home and abroad to visit our factory.


FAQ
1. who are we?
We are based in Shandong, China, start from 1999,sell to Domestic Market(50.00%),Western Europe(20.00%),Eastern Europe(10.00%),Southeast Asia(5.00%),Southern Europe(2.50%),Central America(2.50%),North America(2.50%),Oceania(2.50%),Africa(2.50%),South America(2.00%),South Asia(0.50%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Milling Machine,machining cener,gantry milling machine,cnc gantry milling machine.
4. why should you buy from us not from other suppliers?
Xili Machine has independent import & export right for self-manufactured products. In 2002, we passed ISO9001 and got CE certification in 2007. it was awarded as the national high-tech enterprises in 2010.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese

---
