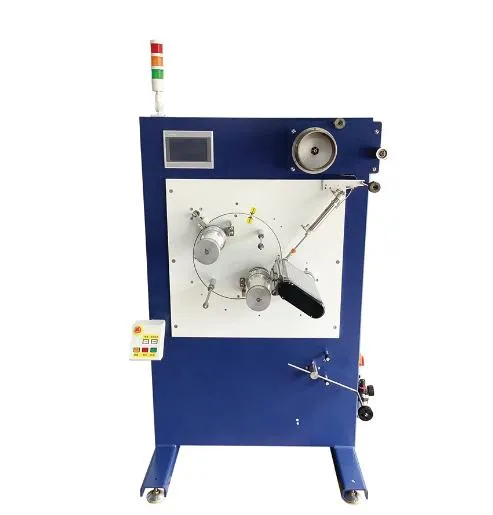

HMI Controlled Automatic Bobbin Changeover Yarn Winding Machine

Product Description

Automatic Bobbin Changeover System
Upgrade Your Thread Winding Process Elevate your thread winding process with the Automatic Bobbin Changeover System from Jiangyin Langyu Machinery Equipment Co., Ltd. Experience seamless bobbin replacement and enhanced efficiency for your operations. Voltage: 380V. Warranty: 1 Year. Online after-sales support available.
Application
Coated Fiber
Fiber Multifilament
Aramid Fiber PBO Fiber
UHMPEF
Polymide Fiber
High Performance Ceramic Fiber
Advantages
High-quality winding package
Automatic bobbin change at target length and diameter
Adjustable winding ratio
Yarn length setting
Alarm system for yarn breakage and bobbin diameter
Wide range of applications
Easy operation with reliable performance
Technical Data For technical specifications, please contact Jiangyin Langyu Machinery Equipment Co., Ltd.

Model	LY203/254/300
Drive	Frequency-Controlled
Tension	100~2000g
Traverse system	Cam
Control system	PLC,HMI
Winding speed	200~600m/min Max
Max outer diameter	300mm
Tube Inner diameter	76/94mm
Tube length	215/280mm
Power supply	380V 60HZ
Winding ratio	Electric ,arbitrary function of regulating the winding ratio

Certification
Winder with Automatic Bobbin Changeover System Upgrade your thread winding process with our innovative automatic bobbin changer. Say goodbye to manual bobbin replacement with this advanced technology. Voltage: 380V. 1-year warranty included. Online support available.
Company name: Jiangyin Langyu Machinery Equipment Co., Ltd.

---
