2/4/6 Cores Fiber Optical Hma Expanded Beam Patch Cable with Cable Drum

Product Description

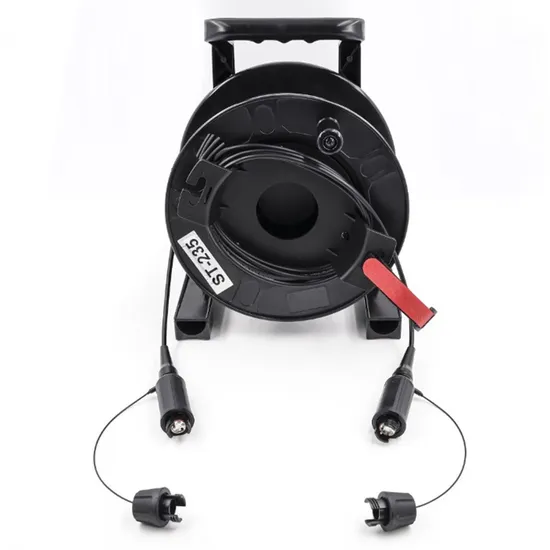

2/4/6 Cores Fiber Optical HMA Expanded Beam Patch Cable With Cable Drum
Product Description The EXPANDED BEAM Connectors, featuring expanded beam technology, hermaphroditic connection, rugged construction for field deployment and hybrid configurability, have been designed for harsh environment applications such as tactical communications, avionics, offshore systems,outside broadcast,mining and plant.
The EXPANDED BEAM Connectors uses expanded and collimated beams to couple optical fibers without any contact. It could allow for optics to be used in areas that have been quite restrictive due to presence of damage or contamination at the fiber end.
Hermaphroditic connector design enables fast deployment by daisy-chaining multiple cable segments.The EXPANDED BEAM connectors also enable transfer of electrical signal or power using hybrid insert configuration.
Our mainly products are MPO/MTP Fiber Optic Patch Cord,Outdoor Fiber Optic Patch Cord,Optical Fiber Cable,Fiber Optic Adapter,Fiber Optic Attenuator,Fiber Optic Cable Reel,Fiber Optic Cable Drum,Fiber Optic Media Converter and other related fiber optic products.
Product Parameters XB11-Mini size 11
•Mini size - Shell size 11
• 2 , 4 Optical Channels
• Intermateability : Tyco Pro Beam
mini, QPC Qmicro, Stratos HMC,
Fibreco Mini2.
XB13-Medium size 13
•Medium size - Shell size 13• 2 , 4 Optical Channels
• Optical 2Ch / AWG16 2Ch
• Intermateability : Fibreco Junior
MIL-DTL-83526, Tyco Pro Beam Jr.,
QPC Qmini, Stratos HMA
XB15-Large size 15
•Large size - Shell size 15
• 2 , 4 , 6 Optical Channels
• Optical 2Ch / AWG16 2Ch / AWG20 2Ch
• Intermateability : Tyco Pro Beam Jr.,
Stratos HMA, Fibreco Senior
Other outdoor patch cords spec:

Model	Single mode		Multimode
Polish	UPC	APC	PC
Insertion Loss	≤0.30dB	≤0.20dB	≤0.20dB
Return Loss	≥50dB	≥60dB	≥30dB
Test Wavelength	1310/1550nm		850/1300nm
Durability(500 Matings)	≤0.2dB
Operating & Storage Temperature	-40~85°C

Product Features - Advanced Expanded Beam Technology;- Rugged Field deployable fiber optic connector;
- Hermaphroditic Interconnection;
- 2 to 6 optical Channels for singlemode or multimode;
- Custom firguration avaliable;
- Environmental Sealing (IP68);
- Very high resistance to vibration,shock,environmental effects,dust and debris.
Related Products https://gaofufiber.en.made-in-china.com/product-list-1.html
Company Profile Why cooperate with GAOFU?
Experiences: More than 10 years professional experiences in fiber optic patch cord industry.
Product serialization: form extensible product series that covers the market.
Flexibility: The modular design support high scalability and a flexible combination and collocation. Fast delivery.
Practicality: Close to customer's requirement and reduce the operating costs.
Adaptability: Customer-oriented, providing highly adaptable customized development solutions to meet customer's specific applications.
Market foresight: Closely link to the upstream and downstream of the industry chain, follow up and master the newest technology and development trend, provide the most competitive products and solutions.
Certifications
Packaging & Shipping
FAQ Q1. What's the warranty of GAOFU fiber optic patch cord?
We can ensure lifetime warranty as our fiber optic cable is UL approved and all our fiber optic patch cords are 100% testing passed.
Q2. Can we print our logo on the fiber cable jacket?
Yes, of course. You can decide the print on the fiber cable jacket. MOQ is 1KM when you want to add your logo. NO MOQ when printing is neutral.

---
