Industrial Horizontal Double Ribbon Blender Mixer Machine for Dry Powder Mixing

Product Description

Industrial Horizontal double ribbon blender mixer machine for dry powder mixing
Questions for Buyer:
Please answer below questions and send answers to email, and then we will send you offer as soon as possible.

1, What materials do you mix? (Names of raw materials?) 2, What is the power fineness (or particle size)? (mesh, mm) 3, What is the bulk density (or specific gravity) of mixed materials? (kg/liter, kg/m3) 4, How many kgs or liters to be mixed per batch? 5, What is the distance from bottom discharge outlet to ground? (cm, mm, m) 6, What construction materials do you require? (Please choose below option) A, all construction materials mild steel; B, contact parts stainless steel, non-contact parts mild steel; C, all construction materials stainless steel;

1 Working principle:

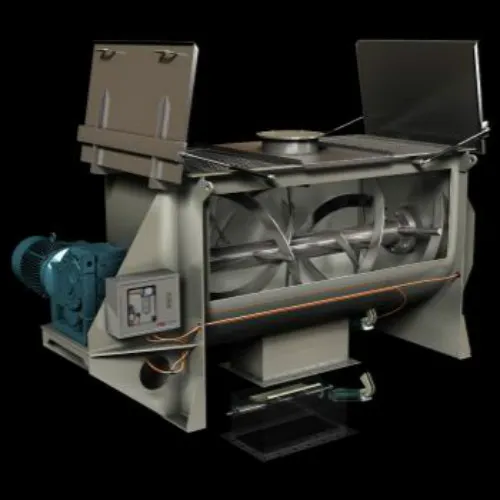

CMPR series horizontal double ribbon mixer consist of horizontal U-shaped tank, top cover with (or without) openings, single shaft equipped with double layers ribbon mixing agitator, transmission unit, support frame, sealing element, discharge structure and so on. Ribbon blades are always two layers. Outer layer ribbon make materials get together from two ends to center and inner layer ribbon make materials spread from center to two ends. Materials forms vortex during repeatedly movement and homogeneous mixing are achieved.
2 Performance & features:
2.01 Material: stainless steel 304 / 316L or mild steel Q235;
2.02 Surface treatment: paint (mild steel), polish/sandblasting (stainless steel);
2.03 Ribbon agitator: double layers & double directions;
2.04 Mixer tank: horizontal, U-shaped tank;
2.05 Shaft: horizontal, hollow, integral single shaft;
2.06 Mixing time: 5-15 minutes;
2.07 Working model: batch mixing;
2.08 Speed reducer: cycloid reducer;
2.09 Rotation speed: fixed speed;
2.10 Main shaft seal: (Teflon) stuffing seal or air purge seal;
2.11 Openings: feeding inlet, manhole, and inspection / connection port;
2.12 Discharge valve: pneumatic or manual flap discharge valve;
2.13 Working condition: NPT (normal pressure and temperature);
2.14 Not heavy duty: mixer can not be started with loading materials;
2.15 Power supply: 220V 50HZ single phase/ 380V 50HZ 3 phase;
2.16 Non ex-proof electronics (motor, electronic elements, control cabinet);

3 Optional features:
The following optional features are available: wear-resistant and anti-corrosion materials; surface treatment; single direction and single layer ribbons, three layers ribbons; three-parts shaft; continuous mixing; gear box reducer; changeable speed; mechanical seal; customized openings and discharge valves; temperature control; pressure requirement; heavy-duty configuration; motors, electronic elements, electronic control panel are customized to different power and ex-proof requirements; light glass; sampling device; liquid spraying device; scrappers etc.

4 Technical specifications:

Model	Working capacity (L)	Rotation speed (rpm)	Power (kw)	Dimension (mm)	Weight (kg)
CMPR-50	20-30	40	1.5	1000×500×510	210
CMPR-100	40-60	40	2.2	1200×570×750	300
CMPR-300	120-180	40	3	1300×950×1150	690
CMPR-500	200-300	40	4	1500×1100×1400	950
CMPR-1000	400-600	30	5.5	2000×1450×1550	1600
CMPR-1500	600-900	30	7.5	2200×1420×1790	1800
CMPR-2000	800-1200	30	11	2500×1500×1900	2000
CMPR-3000	1200-1800	30	15	2900×1900×2000	3100
CMPR-4000	1600-2400	25	22	3000×1900×2200	4100
CMPR-5000	2000-3000	20	30	3500×1950×2300	4700
CMPR-6000	2400-3600	20	37	3900×1700×2300	6000
CMPR-8000	3200-4800	20	45	4300×2000×3100	7500
CMPR-10000	4000-6000	15	45	4500×2100×2700	8000
CMPR-12000	4800-7200	15	55	4500×2250×2800	10000
CMPR-15000	6000-9000	15	55	5400×2300×3050	11000
CMPR-18000	7200-10800	12	75	5500×2400×3250	12000
CMPR-20000	8000-12000	12	75	5800×2500×3500	13500
CMPR-25000	10000-15000	10	90	6000×2600×3700	15000
CMPR-30000	12000-18000	10	110	6300×2900×3800	17000
