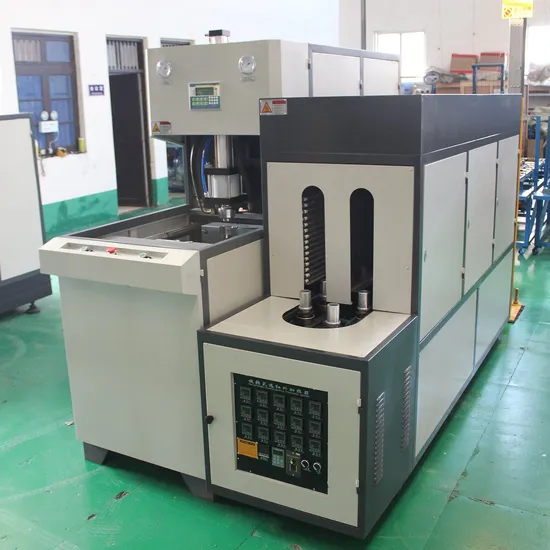

Semi Auto 5 Gallon Pet Bottle Blow Molding Machine

Product Description

Semi-automatic blow moulding machine Use integated mic computer controler,with OMRON control chip,the response speed is very quickly and the timing very precisely.Use life durable and failture rate very low.It's the revolutionary product of industrial control. High responsiveness pneumatic components,action timely and precisely Thorough safe operation mechanism,start-up with two hands,avoid the accident during the operation Infrarted heating technology,safe and energy conservation,no pollution of the environment.With the 8 rates adjustable temperature controler,make the temperature suitable for blowing. Technology advantage: Special design,high rigid compound die structure Wide adaptability, suitable for every type mould thickness Adjust convenience No mould rolling out More energy conservation,no need much air supply High burnish principal axis, with very precise polishing, light action and low noise. Short mould stroke,quick action All ZG45 casting, with long timing process,very small transformation,can meet your precise request 100% Hig dead-weigh, ensure the steady during the operation Main parameters :

Main machine	Item	parameter
Product Spec	Max. product volume (L/cav)	20
	Max. preform neck size (mm)	200
	Max. product diameter (mm)	400
	Max. product height (mm)	600
	Cavities	1
Blow molding part	Die force (KN)	150
	Die stroke (mm)	340
	Max. mould size (mm)	420*500
	Mould thickness	adjustable
	Mould spacing (mm)	400
	Max. pulling stroke (mm)	500
	Operation pressure (Mpa)	0.8-1.0
	Operation air pressure consumption (1tr/min)	560
	Blow pressure (Mpa)	1.2-2.8
	Blow air pressure consumption (1tr/min)	650
	capacity (pcs/h)	250
	Machine size (LxWxH)(m)	2.18*0.77*1.96
	Machine weight (KG)	1000
Oven	Temperature grade (rate)	8
	Heating time (S)	90-120
	Voltage (V)	220
	Frequency (HZ)	50/60
	Total power (KW)	15-40
	Oven Size (LxWxH)	2.37*0.68*1.65
	Oven weight (KG)	380

---
