China Small 40 50m3/H Diesel Construction Machinery Mobile Trailer Cement Transcrete Concrete Pump

Product Description

Product Description
Mobile Trailer Diesel Electric Cement Concrete mixer mixing Pump

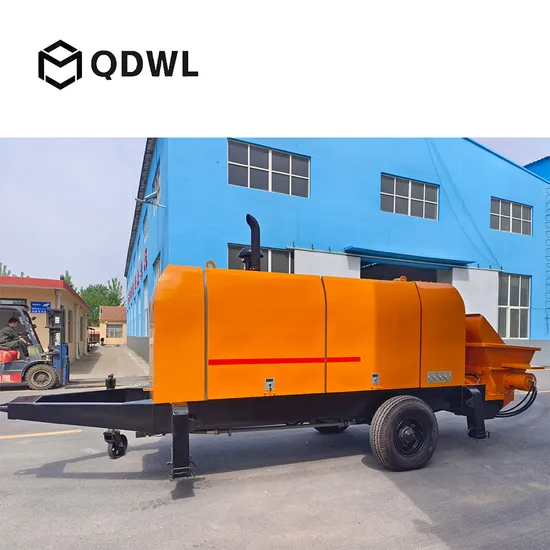

Trailer concrete pump is a high-performance machine that uses hydraulic system to pump concrete to different locations through a pipeline. Mounted on a trailer for easy mobility, this pump can delivery concrete precisely where needed.
Pumps concrete over long distances Works in Narrow spaces Deliveries concrete to hard-to-reach areas
WL company concrete trailer pump for sale is a kind of S-tube valve drag pump, and the conveying aggregate size is 40mm. The equipment is mainly used for concrete construction of railways, highway tunnels, bridges and culverts, hydropower, mines, high-rise buildings and other projects. It greatly improves the construction efficiency of engineering buildings, saves labor costs, shortens the construction period, and expands economic benefits.
The details of our equipment
In order to meet different engineering needs, Qingdao WL company has developed a variety of concrete pump trailers to provide customers with diversified choices.
According to the pumping capacity, we have 30 / 40 / 50 / 60 / 80 / 90 CBM/H models concrete pumps.
You can choose the appropriate equipment model according to your construction project type !
According to the diameter of pumped aggregate, it can be divided into fine stone pump and large aggregate pump.
NOTE: The fine stone pump can pump the maximum particle size of aggregate ≤30mm. The large aggregate pump can pump the maximum aggregate particle size ≤ 40mm.
According to the power, it can be divided into Electric drag pump / Diesel drag pump
1. The Diesel power drag concrete pump : Diesel trailer pumps are suitable for projects with power shortage and difficult conditions.

Items	Unit	DHBT 30-10-56	DHBT 40-13-76	DHBT 50-11-76	DHBT 60-13-129	DHBT 80-16-199	DHBT 90-16-199	DHBT 90-22-199
Theoretical Capacity	cbm/h	30	40	50	60	80	90	90
Delivery Pressure	Mpa	10	13	11	H12.5 / L 7.5	16	16	22
Max. Pump Times	times/min	24	24	24	12 / 21	23	23	23
Delivery Height	m	120	120	120	180	180	200	350
Delivery Distance	m	500	500	500	600	1000	800	1500
Distribution Valve Type	/	S pipe valve	S pipe valve	S pipe valve	S pipe valve	S pipe valve	S pipe valve	S pipe valve
Concrete cylinder diameter×strokes	mm	Φ160x1000	Φ160x1000	Φ180x1000	Φ200x1600	Φ200x2012	Φ160x1000	Φ160x1000
Oil cylinder specifications	mm	Φ100x1000	Φ100x1000	Φ100x1000	Φ126x1600	Φ90/140 x1800	Φ160x1000	Φ160x1000
Outlet diameter	mm	Φ125	Φ125	Φ180	Φ180	Φ180	Φ180	Φ200
Uploading height	mm	1100	1100	1100	1100	1400	1400	1400
Engin power	kw	56	76	76	129	199	199	199
Rotated speed	r/m	2200	2200	1800	1900	2300	2300	2300
Hydraulic Oil-Way Type	/	Open	Open	Open	Open	Open	Open	Open
Max. Oil Pressure of Pumping	Mpa	26	28	32	32	32	32	32
Max. Oil Pressure For Mixing System	Mpa	8	12	12	12	12	12	12
Max. Mixing Speed	r/m	24	40	40	40	40	24	24
Capacity of oil tank	L	150	170	170	600	800	800	800
Max diameter of aggregate	mm	20	30	30	40	40	40	40
Inside diameter of pipe	mm	Φ100 / Φ125	Φ100 / Φ125	Φ100 / Φ125	Φ125	Φ125	Φ125	Φ125
Diemension (LxWxH)	mm	4200x1680x1700	4400x1700x1750	4400x1700x1750	6500x2000x2300	6600×1930×2190	6800×2100×2350	6800×2100×2350
Weight	kg	3200	3500	3500	6500	6800	7000	7000
Drag speed	km/h	<8	<8	<8	<8	<8	<8	<8

2. The electic power concrete pump : Electric trailer mounted concrete pump for sale are popular in cities with high environmental protection requirements and strict ranking requirements due to their low noise and clean energy characteristics.
The pumping work of Qingdao WL company trailer concrete pump is coordinated by seven major systems. All machine parts use world-class brands, Qingdao WL company quality can be seen in the details!
Power system: The main oil pump imported from Korea Kawasaki company is adopted. 60 pumps and above use the original Rexroth main oil pump. The diesel pump adopts Weichai diesel engine.
Distribution system: Brand swing cylinder, nested S-pipe valve. Spectacle plates and cutting rings are made of special wear-resistant materials.
Stirring system: Cement pump trailer for sale adopts high-quality stirring motor, pedal-type super wear-resistant stirring blade. After the left and right half shafts are treated, the hardness reaches HB250-280, the surface nitride thickness is greater than 0.3mm, and the surface hardness is greater than HV550.
Heat dissipation and filtering device: Oil filter of well-known Chinese HengSheng brand is adopted. The filtration precision of the main pump oil filter is 100μm. The cooler adopts airline products, with reliable quality and good heat dissipation effect.
Hydraulic pipeline and valve group: Oil pipeline from Italy Manuli is used. The hydraulic control valve of Taiwan Yuken is adopted.
Electronic control system: The intermediate relay of Omron is adopted. Adopt well-known proximity switch.
Related Products

About us
Qingdao WL Heavy Industry is a large-scale enterprise specializing in R&D and manufacturing, with a plant area of 70 acres. The equipment provided by our factory includes: crushing and screening equipment, mobile sand making equipment and other mining machinery.
Our company is located in Qingdao City, Shandong Province of CHINA .
Our company's main products include mobile crushing stations and various jaw crushers, hammer crushers, cone glass crushers, impact crushers, sand making machines and other crushing and sand making equipment, as well as concrete equipment such as concrete mixing pumps, hydraulic feeders and other equipment
Our equipment is widely used in mining, construction, chemical industry, metallurgy, transportation, water conservancy and other industries.

FAQ
What After-Sales Services We Provides? 1. Warranty and Guarantee - QDWL products come with a comprehensive warranty that covers major components and parts. The warranty period varies depending on the specific product and model, ensuring you have peace of mind regarding the reliability of your equipment.
2. Customer Support - QDWL offers a 24/7 customer support line to ensure that you can contact our support team at any time for help with your equipment.
3. Maintenance Services - QDWL provides scheduled maintenance services to keep your equipment in top condition. Our technicians perform thorough inspections, lubrication, and adjustments to ensure your equipment operates efficiently.
4. Spare Parts Availability - QDWL stocks a comprehensive inventory of genuine spare parts for all our equipment models. Using genuine parts ensures compatibility and reliability.
5. Training - QDWL provides hands-on operator training to ensure your team understands the proper operation and safety procedures for using the equipment. This training helps maximize efficiency and minimize the risk of accidents.

---
