High Quality Best Price 99.9% Copper Bonded Steel Ground Rod Diameter 3/8", 1/2", 5/8", 3/4" Made in China

Product Description

Product Description

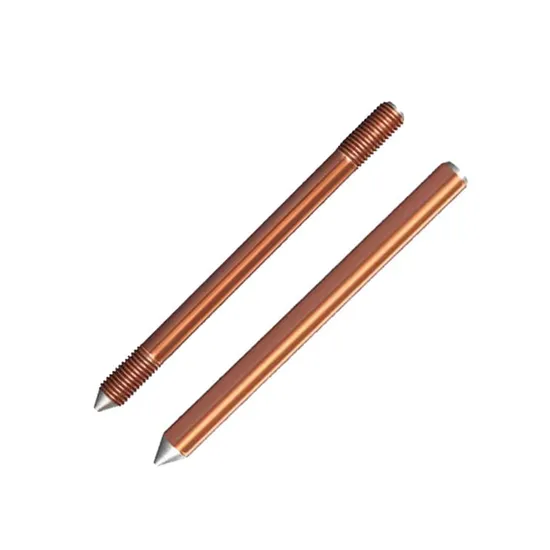

Copper Bonded Steel Ground Rod
Product name	Ground Rod Earth Rod
Material	Low-carbon steel
Type	Threaded or flat or pointed
Copper Thickness	≥0.254mm
Copper Purity	99.9%
Tensile strength	≥600Mpa
Straightness error	≤1mm/m
Service life	≥30 years
Application	Grounding System
Purpose	Reduce the soil resistivity outside the ground conductor
Diameter	8.47mm/9.50mm/12.7mm/14.2mm/17.2mm/23.10mm
Length	1200mm/1220mm/1500mm/1800mm/2400mm/2440mm/2500mm/3000mm
Size can be customized according to need
Packing	Wooden pallet or iron rack packing, 10, 20, 50 pieces/bundle
Certificate	ISO/ROHS/UL

Detailed Photos
Packaging & Shipping
Product Parameters
Powerlink copper-coated earth rods offer installers the most economical method of achieving low earth resistance.
Each rod is made of 99.9% pure electrolytic copper onto a low-carbon steel core. The threads are formed by a cold rolling process which ensures strength and maintains the molecularly bonded copper covering along the full length of the threads. High tensile strength and conductivity. The standard copper thickness is 254 micron(others also can make as the customer requested)
Earth rods to BS EN 50164-2, Bs7430 and UL467; Fittings to BS EN 50164-1

Name	Material	Size
Earth Rod	Stainless Steel 304	5/8" Thread*15mm Rod Dia*500mm Length(Top Part Pointed Without Thread &Bottom Part Threaded of Size 5/8")
	Solid Copper	5/8" Thread*14.2mm Rod Dia*1000mm Length(Top Part Pointed Without Thread &Bottom Part Threaded of Size 5/8")

tem No.	Copper Thickness (microns)	Diameter (mm)	Thread	Length (mm)	Weight (kg)
EP-01	>=254	12.7	9/16	1200	1.18
EP-02	>=254	12.7	9/16	1500	1.55
EP-03	>=254	12.7	9/16	1800	1.76
EP-04	>=254	14.2	5/8	1200	1.52
EP-05	>=254	14.2	5/8	1500	1.87
EP-06	>=254	14.2	5/8	1800	2.29
EP-07	>=254	16	M18	1200	1.89
EP-08	>=254	16	M18	1500	2.37
EP-09	>=254	16	M18	1800	2.84
EP-10	>=254	17.2	3/4	1200	2.2
EP-11	>=254	17.2	3/4	1500	2.79
EP-12	>=254	17.2	3/4	1800	3.28
EP-13	>=254	18	M20	1200	2.4
EP-14	>=254	18	M20	1500	3
EP-15	>=254	20	M22	1200	2.96
EP-16	>=254	20	M22	1500	3.7

1.Plasticity of coating: Is tested by bending the rod at 180 degree. Lack of cracks and exfoliation goes to show high quality of our product. Frequency of these tests is specified by procedures of the quality control system. 2.Copper Thickness: Measured by an electronic thinkness guage at the points and with frequency specified in the instruction, which guaranteed minimal thickness (0.254 mm). This thickness enables to perform the thread after copper bonding, so as the botttom of the thread is covered with copper.
Certifications
Company Profile
Our Advantages
Our cooperative client are all over the world and our products are very popular all over the world. Many products are exported to Russia, USA, Australia, Canada, South Africa, Kenya, Tanzania, Zambia, Brazil and Argentina. Chile, Southeast Asian countries and other international markets. With first-class technical ability and perfect pre-sale and after-sales service guarantee system, we have established a good reputation between enterprises and users
FAQ
1. Q: Do you provide sample service?
A: Yes, we only provide samples and ask for one piece at a time. The freight should be borne by you.
2. Q: Do you support customized services?
A: Yes, we can customize the size and logo according to your needs. Please consult the customer service for the specific minimum order quantity.
3. Q: How is the Design & Engineering?
A: Experienced and skilled team of designers including CAD designers and 3D designers has the capacity to deliver outstanding designs for your project. If you require more complex engineering of structures such as overhead transmission and distribution lines design,we can also provide this service also designer fee .
4. Q: What's the payment term?
A: We accept T/T, L/C, West Union.
5. Q: What's the delivery time?
A: Usually within 7-15 days according to quantities
6. Q: What's the standard of package?
A: Export standard package or special package as the requirement of customers.
7. Q: What kind of product quality your factory offer?
A: Our products with both excellent quality and competitive price. And we offer free sample for your reference.
8.Q: What's the standard of package?
A: We usually use wooden pallets or Iron racks for packing, 10, 20, 50 peices/bundle.
8. Q: What kind of certificate you have?
A: We have ISO9001:2008/ ROHS/UL

---
