Factory Direct Xjd-150 Tire Tread Extruding Machine with Ce Certification

Product Description

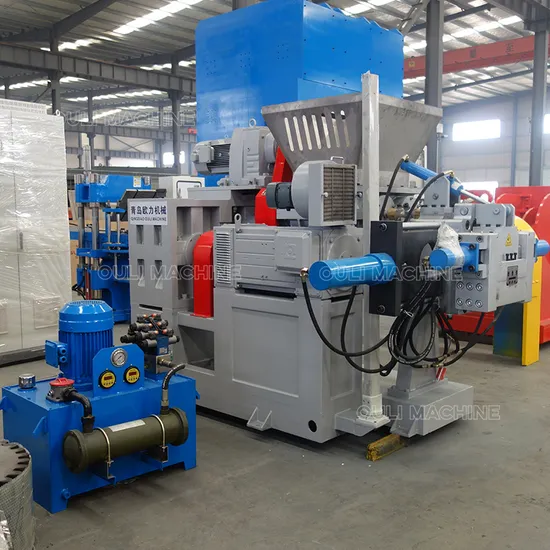

Factory Direct Xjd-150 Tire Tread Extruding Machine with Ce Certification
Product Description
Rubber extruder machine is used for extruding different shape of rubber semi-product ,such as rubber hose ,rubber tube,cable ,sealing strips,or used for supplying rubber material for calender machine line.

Hot feed rubber extruder
Parameter/model	XJ-65	XJ-85	XJ-115	XJ-150	XJ-200	XJ-250
Screw dia.(mm)	65	85	115	150	200	250
L/D	4	4.8	4.8	4.4	4.4	4.5
Screw speed(r/min)	5~42	28-72	20~60	27~81	22.4~67.2	19.7~59.1
Motor power(kw)	7.5	15	37	15.3~55	90	110
Capacity(kg/h)	50~80	62~270	100~350	800	1500~2200	3500
Total weight(t)	1.5	2.6	3.3	4.5	7.21	9

Cold feed rubber extruder
Parameter/model	XJ-65	XJ-85	XJ-115	XJ-150	XJ-200	XJ-250
Screw dia.(mm)	75	90	120	150	200	250
L/D	8-14	12-16	12-16	12-18	12-18	12-18
Screw speed(r/min)	60	~60 (55)	~50	~45	~33	~26
Motor power(kw)	37-45	45~75	75~110	160~250	220~355	355~450
Capacity(kg/h)	100-180	250~350	600~800	1000-1500	1600-2500	2800-3500
Total weight(t)	2.1	3	4.2	5.5	9.8	15

Pin barrel rubber extruder
Parameter/model	XJW-65	XJW-85	XJW-115	XJW-150	XJW-200	XJW-250
Screw dia.(mm)	65	85	115	150	200	250
L/D	4	4.8	4.8	4.4	4.4	4.5
Screw speed(r/min)	5~42	28-72	20~60	27~81	22.4~67.2	19.7~59.1
Motor power(kw)	7.5	15	37	15.3~55	90	110
Capacity(kg/h)	50~80	62~270	100~350	800	1500~2200	3500
Total weight(t)	1.5	2.6	3.3	4.5	7.21	9

Vaccum rubber extruder
Parameter/model	XJV-75	XJV-90	XJV-120	XJV-150
Screw dia.(mm)	75	90	120	150
L/D	20:1	20:1	20:1	20:1
Screw speed(r/min)	0-55	0-55	0-50	0-45
Motor power(kw)	37	55	110	160
Capacity(kg/h)	160	320	700	1000
Total weight(t)	1.2	3.2	5.2	6.5

Our Advantages
Manufacturing Technique
Company Profile
Established in 1997, Qingdao Ouli Machine Co., Ltd. was located in Huangdao District, the west coast of Qingdao city, Shandong province, China.We are specialized in rubber machinery designing,manufacturing and maintenance work.OULI main products: 1. Rubber mixing equipment: kneader, bucket,mixing mill, bale cutter
2. Rubber vulcanizing machine: Four-column press, Frame press, E-type press, tire and tube press, Belt vulcanizing press.
3. Automatic and semi-automatic waste tire recycling equipment
4. Rubber calendaring machine: 2 roll, 3 roll, 4 roll calender, calendaring line
5. Rubber extruding equipment: Hot feed extruder,cold feed extruder, belt extrudingand calendering line .
6. Reclaimed rubber production line: XKJ-450 , XKJ-480 Rubber reining mill.
7. Paper roll cutting machine. Ouli machines have been exported to more than 20 countries such as America, Canada, Australia, Southeast Asia, Middle East,Brazil.We warmly welcome customers visit our factory and technology discussion is highly appreciated.
Marketing Campaign
Packaging & Shipping
FAQ Q1: Where is your factory located?
A1: Qingdao OULI machine co.,LTD is located at Wangjialou industrial zone ,Huangdao district ,Qingdao city, China

Q2: Are you an integrated supplier for rubber&plastic machine ?
A2: Yes, we can provide the complete solution line to customer according to customer's requirement.
Q3: How about the quality control in your factory?
A3: OULI has the SOP (Standard Operation Procedure) and all the production step must follow up this SOP. Every machine needs at least automatic running over 72 hours and must be inspected carefully before shipment.
Q4: Will you offer the pre-sales service?
A4: Yes, we have an experienced pre-sales team to support customers not only including machine, technology also water .electrical, machine layout in factory, etc.
Q5: What about the after-service? Will you send your engineer to my country to help commission and install the machine?
A5: Surely, we have many experience technical engineers for oversea service, they would help you install machine and support training to workers also.
Q6: What is the delivery time of the machine?
A6: Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery time of standard machine could be within 10-30 days
Q7 : What is the warranty of the machine ?
A7: The whole machine's warranty period is 12 months and key parts will be depended.
Q8 : Do you provide any spare parts with machine?
A8: Yes, OULI will provide one set standard spare parts to customer according to different machines

---
