Unwind and rewind machine

Product Description

Product Description

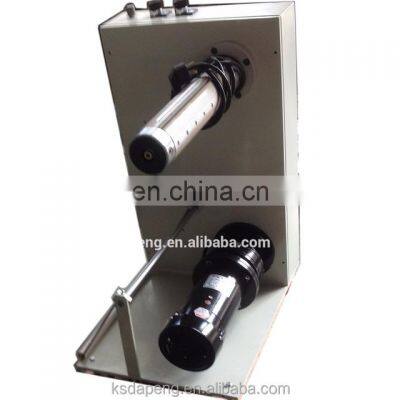

DP-320 Rewinderinclude1 air shaft 3"1 DC motor control panel1 DC motor gear reducer1 clockwise or counter switch1 speed controllerThis machine is the supporting equipment for die cutting machine and sheet cutter.used for unwind and rewind roll materials. ItemMaximum workable widthShaft diameterVoltageDP-320320mm3" inflatable shaftSingle phase 220V 50HZ lead time 25 working daysunwinding machine pictureRewinder Pictures And about machineThe rewinder is abel to handle materials up to 320mm width , the speed and rotationdirection are all adjustable , it allows to rewind the material face in or face out ,the tension arm adjusts the speed rotation : when it is down , the rewinder turns at full speed ,whereas when the tension arm is up . the rewinder is idle and blocks the motor's ratation when the die cuttingmachine stopsWorking Method: positive direction, opposite direction, auto-sensingMax Speed : 12 inch/s (300mm/s)

---
