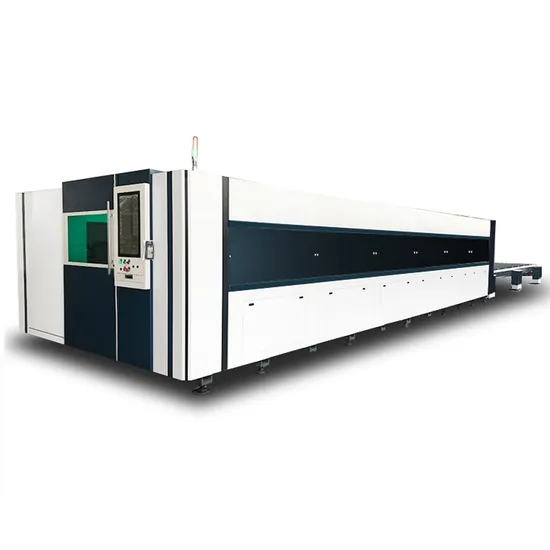

Industrial Auto CNC Fiber Laser Cutting Machine with Water Chiller Water Jet

Product Description

Industrial Auto CNC Fiber laser cutting machine with Water Chiller Water Jet
Product Description
1,Gantry double drive structure, smooth and reliable movement;
2,Independent research and development design, the manufacture of machine tool bed, special processing technology, high precision of machine tool, stable and reliable, long life;
3,Precision gear rack drive, with high precision gear reducer, high response and high precision servo motor;
4,The international first-class quality of fiber laser, industrial application for many years, long service life, maintenance free, stable and reliable;
5,High precision laser cutting head, imported optical lenses, is focused on the fine, the adjustment is convenient, cutting perfect;
6,A double closed-loop control capacitiver torch height controller, low requirement to the steel plate, cutting quality is stable and reliable;
7,CNC system is simple and easy operation, low requirements for the operator;
8,Cutting graphic input multiple formats, powerful draw and edit graphics function;
10,Special cutting software, cutting technology experts, data call functions;
11,Automatic refueling system;
12,Cutting gas pressure proportional valve to adjust automatically,not need manual adjustment;
Detailed Photos
Machine Body:
Machine Body (Plate welding with stiffener inside,not square pipe weld frame)
Square pipe welding frame table looks robust, but Pipe always has distortion along with time goes. That's why top brand machines body all are plate welding design.
Machines over 6 meters are welded with 16mm and 20mm steel plates. We promise that our customers' machine tools will not deform in ten years, and the quality is the best advertisement.
Machine compents
Factory Photos:
Cutting Samples:
Our Projects
Product Parameters

Description		Technical parameters
Max cutting size (mm)		3000×1500/4000×2000/6000×2000/ 6000×2300/6000×2500 etc
The workpiece maximum height (mm)		100
Effective travel	X axis(mm)	6050
	Y axis (mm)	2550
	Z axis (mm)	280
Cutting thickness	Carbon steel(mm)	20mm(According laser power)
	Stainless steel(mm)	10mm(According laser power)
	Aluminum(mm)	10mm(According laser power)
Positional accuracy	X axis (mm/m)	±0.06
	Y axis (mm/m)	±0.06
	Z axis (mm/m)	±0.01
repeated positioning accuracy	X axis (mm)	±0.03
	Y axis (mm)	±0.03
	Z axis (mm)	±0.01
Rapid positioning speed	X axis (m/min)	120
	Y axis (m/min)	120
	Z axis (m/min)	60
Accelerated speed (G)		2
Max Cutting Speed (m/min)		80
Work table bearing(kg)		5000kg
Power consumption		20kw/h
Size L*W*H(mm)		15510×3478×2106(for reference)

Packaging & Shipping

FAQ
1.Why your machine price is higher, we have much cheaper offer from Jinan factories?
Our machine feature is robust table design like Europen brand machine with complete plate-welded structure, and heaviest in China.
You will check it out by real shipping weight!
We always try to make high level machines that few factories can copy, because we have experienced engineers which are limited source in this field.
So if you don't have much cutting work, our machine is not cost-effective to you.
2. Can you produce the machine faster ?
As we need the machine urgently, High level machine is not simply assemble parts together and deliver it to customer. We don't do fast production. Long-termmachine stability depends on strict quality control. Inspection and testing work needs enough time if you wish to get long-time stable work machine.
We mainly rely on old customers recommend our machines to others to expand business. The machines we produced are best advertisement for us.
3. Why not offer 3 years warranty as Jinan factory?
Warranty service costs money if the supplier really do free service. We don't understand how can a company offer cheaper price and longer warranty at same time, unless the supplier just talk about it and play words game. because international parts delivery,air ticket…. not cheap at all, we do spend much money on service after sales, we seriously do as we said, you can check it with any of our old customer.
Without additional charge, we can not fulfil the responsibility of additional warranty.
4. How to choose laser power?
We suggest to choose laser power according to your main cutting thickness, no need to choose a bigger power for a max cutting thickness less than 10% of total work. As far as we see,customer's business always grows after using laser cutting machine, and need second or third machine along with business expand.
You don't need to make a big investment from the start.
High quality cutting is different from max thickness cutting, you need to consider quality request,too.
