US$22,800.00-54,700.00
|
1 Piece
(MOQ)
|
Basic Info.
Application
Petroleum Machinery Manufacturing, Agriculture Machinery, Aerospace Industry, Automotive Industry, Advertising Industry, Metal Cutting
Cooling System
Water Cooling
Technical Class
Continuous Wave Laser
Applicable Material
Metal
Laser Classification
Fiber Laser
Laser Technology
Laser Beam Cutting
Laser Cutting Head
Raytools/Wsx/ Precitec
Front Chuck
Pneumatic/Manual
Laser Source
Raycus/ Ipg/Max
Positioning Accuracy
0.01mm
Transport Package
Stretch Film
Specification
4450*2450*2000mm
Production Capacity
500/Month
Product Description

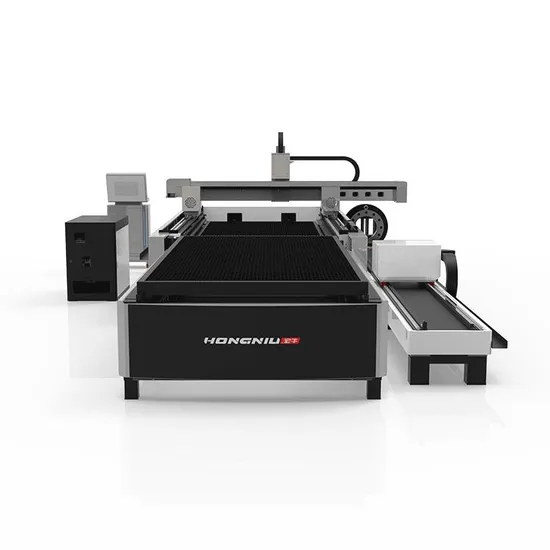

Stainless Steel Aluminum Copper CNC Sheet Metal Plate and Tube Pipe Fiber Laser Cutting Machine
Product Description
This model integrates square tube, circular tube, oblate tube, and plane cutting in one, with multi-function and high practicality. Gantry structure and dual drive, Germany imported rack & pinion drive system. Excellent cutting performance and stability Self-centering jig system ensures stable process of conveying pipes, so that it can ensure high accuracy and high quality of products. The machine, with high accuracy of machining dimension, can take the place of traditional processing equipment, such as sawing and punching. Saddle-shaped pipe type support beam is with high precision calibration, no deformation during 12m pipe cutting Cutting Samples
Metal material
Cutting a wide variety of metal plates, tubes, mainly applicable to stainless steel, carbon steel, manganese steel, galvanized sheet, a variety of alloy plates, rare metal and other materials cutting.
Application Industry
Industry of kitchen ware, lamps and lanterns, panel beating, metal cabinets, auto parts, refrigerators, air condition, elevators, hotel metal supplies processing, etc
Stainless Steel Aluminum Copper CNC Sheet Metal Plate and Tube Pipe Fiber Laser Cutting Machine
Detailed Photos
Machine Details
Machine Specifications
Maximum working area | 1500*3000mm, 1500*4000mm, 2000*4000mm,2000*6000mm, 2500*6000mm( optional) |
Cutting thickness | Depend on the laser power |
Laser power | 1000-20000w |
Transmission mode | Imported square rail and helical gear |
Positioning accuracy of X/Y axis | ±0.01 mm |
Repositioning accuracy of X/Y axis | ±0.02 mm |
Maximum moving speed of X/Y axis | 120m/min |
Minimum cutting line width | 0.02mm |
Floor dimension | Depend on the working area |
Whole weight | Depend on the working area |
Why Choose Us
1:About HongNiu Laser:
Premium OEM Factories Since2012 With 2 Years Warranty Period
Manufacturers assessed by independent third parties
R&D capability for customization, ,
High-performance manufacturing capacity ,Professional certifications&approvals
2:Technical R&D:
Environmental Advantage : Dust-free Quiet Environmental Friendly
3:Customer Service Advantage:
7*24H fast response service.24 hours online service
4:Free Training:
overseas support
User-friendly English manual and Video CD for machine using and maintaining.
5:WARRANTY:
machine 2 years,spare parts 2 years.
Company Profile
Hongniu office R & D center, product exhibition hall, customer experience center, 1000-15000 watt fiber laser sample cutting 1000W-15,000W, laser welding, 3D cutting robot center always meet customer needs
Quality Control System
We strictly control every production link, and produce stable and efficient fiber cutting machines to meet all your needs.
Packaging & Shipping
Package details
Stretch film and Plywood Pallet
Delivery
shipment within the specifited time limit
