Basic Info.
Processing Technics
Extrusion
Screen Mesh
With Screen Mesh
Grinding Equipment Type
Sifter
Pellet Mill Type
Screw Granulator
Bulking Machine Type
Twin Screw Bulking Machine
Expanding Method
Dry Expansion
Applicable Materials Shape
Powder
Material of Screw
38CrMoAl
Material of Machine
Stainless Steel
After Sale Service
One Year Free Service
Material of Products
Fish Meal, Corn Flour, Rice Flour, etc
Transport Package
Wooden Package
Specification
35000*1500*3500mm
Production Capacity
100sets/Year
Product Description
Samples

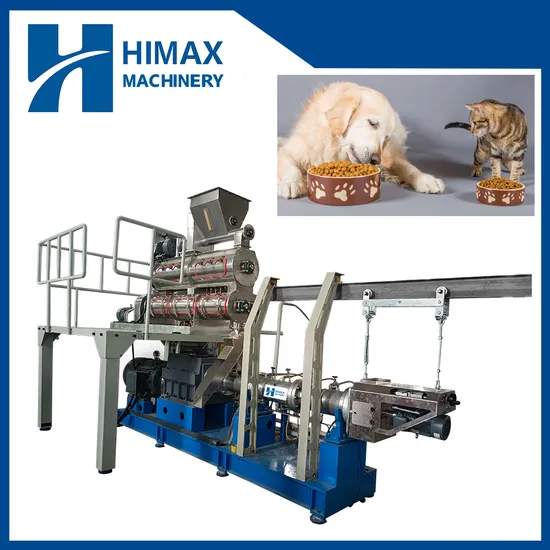

Big output pet feed food pellet extruder
1. Production Description
Pet food and aquatic feed are close to human food in terms of fineness, health indicators and nutritional content, and some have higher requirements than humans. Pet food and aquatic feed typically consist of meat, meat by-products, grains, grains, vitamins and minerals. General grains, such as soybean meal, cornmeal, ground wheat, and whole grains, are often used to increase the consistency of the product.
2. Technical Parameter
| Model | Installed Power(kw) | Power Consumption(kw) | Capacity(kg/h) | Dimension(m) |
| 65 processing line | 74 | 52 | 120-180 | 17*1.2*2.2 |
| 70 processing line | 95 | 70 | 200-300 | 20*1.5*2.2 |
| 75 processing line | 110 | 82 | 250-400 | 26*1.5*2.2 |
| 85 processing line | 139 | 104 | 400-800 | 28*3.5*4.3 |
| 90 processing line | 132 | 75 | 800-1200 | 28*3.5*4.3 |
| 95 processing line | 165 | 90 | 1500-2000 | 35*3.5*4.3 |
| 120 processing line | 469 | 380 | 2000-2500 | 45*20*22 |
| 135 processing line | 712 | 570 | 3000-3500 | 50*20*25 |
3. Raw materials Fish meal, corn flour, rice flour, soya flour, bone meal, meat, animal oil etc.
4. Different shapes are made by adjusting the dies from extruder 1.0mm,2.0mm,2.5mm,3.0mm,3.5mm,4.0mm,4.5mm...10.0mm depend on fish food dies size
5.Voltage in China
Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries. 6. Flow chart
Mixer--- Air conveyor--- Twin-screw extruder ---Hoister --- Dryer ---Flavoring line---Cooler
Our engineer could design the layout drawing according to your dimension of the factory for the fish feed machines.
8. Why choose us
9. Packing and delivery
10. Our Company
>>
