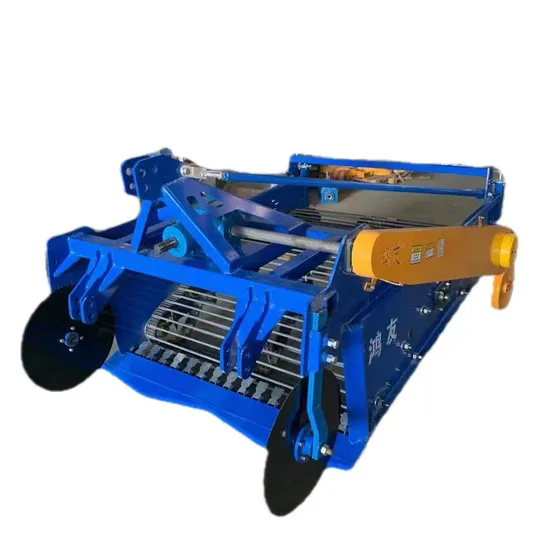

High Quality Tractor Machinery 1 Row Harvester Sweet Potato/ Potato/Onion/Carrot Harvester

Product Description

Product Description
Potato Harvester
As a common crop, potatoes are grown in large quantities in many places. However, harvesting potatoes has always been a time-consuming, labor-intensive endeavor, especially when grown on a large scale. In addition, traditional artificial harvesting easily leads to potato damage and bruising, reducing the commercial value and storage life of potatoes. The use of harvesters to harvest potato and other potato crops, not only through the machine to complete the digging, cleaning, separation work, saving labor costs, but also to improve production efficiency.
Features of sweet potato harvester :
1. excellent performance, good appearance, best quality
2. high-working efficiency, lower breakage rate
3. light & quick running without vibration, no jamming
4. has a long useful life
The bearings used in the multi-functional harvester produced by the DE ZHOU HONGYOU AGRICULTURAL MACHINERY CO.,LTD are ETK bearings, and the chains used are Donghua chains.Bearings and chains are international standards. In addition, for the main engine frame, gearbox, if damaged within one year, DE ZHOU HONGYOU AGRICULTURAL MACHINERY CO.,LTD will provide you with a replacement service. Product details
Shovel Blade Chain Pole
PTO Mowing Sheet Gear Box Product Specifications

4UD- SERIES AND 4UX- SERIES
The main differences between the 4UD-Series harvesters and the 4UX-Series harvesters are:
The shovel blade of the 4UD-series harvester is automatically retractable; The 4UX-series harvester's shovel blade is fixed.
The working efficiency of the 4UD-series harvesters is higher;
The 4UX-series harvesters are more suitable for areas with soft soil; The 4UD-series harvester performs well where the soil is solid.
4UD- SERIES 4UX- SERIES

	4UX-130 PARAMETER LIST
NO.	PROJECT	DESIGN VALUE	NO.	PROJECT	DESIGN VALUE
1	Structural Style	Three Point Suspension	9	Matched To The Power Output Shaft Speed	540r/min
2	Walking mode	Wheel Type	10	Matching Hanging Width	800mm
3	Working Size (length*width*height)	2670*1560*1350mm	11	Blade Material	65Mn
4	Transport Dimensions (length*width*height)	2220*1560*1170mm	12	Digging Depth Adjustment Range	0~ 150mm
5	Overall Weight	580kg	13	Depth Limiting Mechanism Type	Depth Roller
6	Working Width	1300mm	14	Conveyer Type	Grid Chain Type
7	Operation Efficiency	Estimated at 0.2~0.33 ha/h	15	Conveyor Chain Clearance	55mm
8	Supporting Power/Machine Horsepower	70~ 100(Bridge) Horsepower	16	Chain Bar Material	55CrSi

Packaging
Company Profile
Dezhou Hongyou Agricultural Machinery Co., Ltd.

Dezhou Hongyou Agricultural Machinery Co., Ltd. is located in Ningjin County, Shandong Province, which is known as the "Agricultural Machinery City". Established in 2002, the company has 22 years of processing history and experience, and is a high-tech manufacturer focusing on agricultural machinery products for underground root crops.

Our main products include five series of more than 50 varieties, such as potato harvesters, mulch film recovery machines, field stone picking machines, ridging and mulching machines, and potato harvesters.

The company has passed the ISO 9001-2008 quality system certification We will always adhere to the business philosophy of "quality first, customer first", use advanced technology and professional products to make modest contributions to the modernization of agriculture. We sincerely invite partners from all over the country to join us in cooperation and jointly promote the modernization of agriculture, create a brilliant future for agricultural machinery.

We warmly welcome both new and old customers to cooperate and negotiate with us.
The company's main products are: potato harvester, field stone picker, ridge la minating machine, potato combine harvester, residue film recycling machine, cassa va whole or mechanical five series of more than 50 varieties.
Make the quality management level of the enterprise embark on a new level, provide a strong guarantee for product quality, and lay a solid foundation for the d
evelopment of the enterprise.
Our company is dedicated to provide customers with stable quality products and satisfactory service.The company guarantees: for the sake of customers,
responsible for product quality in the end.
Our performance pledges include:
Introduce products to customers, provide consultation and necessary technical and quality information.
To help customers choose product types, specifications and models s cientifically and reasonably.
After the service is completed, the after-sales service staff will conduc t customer return visits to ensure customer satisfaction with the service and collect feedback to improve the service quality.

---
