Product Details
Product Description
Product Description

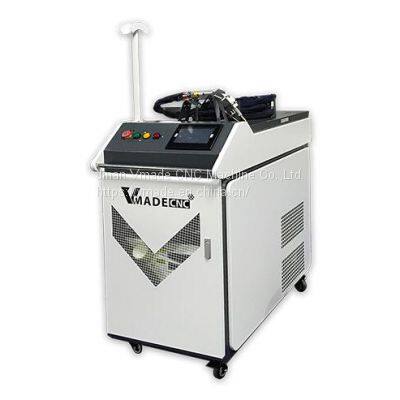

About Handheld Fiber Laser Welding Machine:
Vmade Handheld Fiber Laser Welding Machine is an efficient and precise welding method using a high energy density laser beam as a heat source. Handheld fiber laser welding machine is mainly composed of a laser unit and a welding unit, while taking into account the flexibility, efficiency and high weld quality of laser welding. It can effectively weld carbon steel, stainless steel, galvanized sheet and other metal materials, suitable for tailor welding, stitch welding, inner and outer fillet welding, arc welding, and irregular shape welding.
Advantages of Handheld Fiber Laser Welding Machine
1. High welding efficiency:
The welding speed of Handheld Fiber Laser Welding Machine is 3-10 times that of traditional MIG & TIG Welding; the welding heat affected area is small, which will not cause problems such as co-construction deformation, blackening, and traces on the back, and the welding depth is large, melting Full, solid welding.
2. Easy to operate
The handheld laser welding machine is easy to learn and easy to use, and can be employed without professional training, and the operator can easily achieve high-quality welding results. The convenient and fast operation experience helps enterprises solve the problem of welder recruitment.
3. Good welding effect
Handheld fiber laser welding machine is thermal fusion welding. Compared with traditional welding, Handheld fiber laser welding machine has higher energy density and can achieve better welding results. Continuous welding, smooth without fish scales, beautiful without scars, reducing the subsequent grinding process.
For more product information, please view our product list
Wobble Welding Head
Hand-held swing welding mode, light and flexible.Interactive control system; makes the light spot larger, the welding seam better formed. Lighter weight, ; ergonomic design can be equipped with a variety of angle nozzles to meet the welding needs of different products.
360 Degree Welding
After the laser beam is focused, a small spot can be obtained, which can be accurately positioned and used in the group welding of micro and small size workpieces for mass production. Mainly for the welding of thin-walled materials and precision parts, it can realize spot welding, butt welding, stack welding, sealing welding, etc., high aspect ratio, small weld width, small heat affected zone, small deformation, fast welding speed, no need to be processed after welding or simply processed.
Technical Parameters
Machine Model
| Hand-held fiber laser welding machine
|
Laser Power
| 1000W 2000W 3000W(optional)
|
laser wave length
| 1070 NM
|
Fiber length
| Standard10M / Maximum 15M
|
Welding speed range
| 0~120 mm/s
|
Cooling chiller
| Industrial water chiller
|
Working environment temperature range
| 15~35 ℃
|
Welding thickness recommendations
| 0.5-3mm
|
working voltage
| 220 V
|
MAX. WELDING THICKNESS
MATERIAL
| 1000W
| 1500W
| 2000W
|
Aluminium Alloy
| 2.5MM
| 3MM
| 4MM
|
Stainless Steel
| 4MM
| 5MM
| 6MM
|
Carbon steel
| 4MM
| 5MM
| 6MM
|
Galvanized
| 2.5MM
| 3MM
| 4MM
|
Brass
| 3MM
| 3.5MM
| 4MM
|
Mild Steel
| 4MM
| 5MM
| 6MM
|
Lron
| 4MM
| 5MM
| 6MM
|
If you need more technical guidance, please download parameters from here, or contact us for help immediately.
Application Industry
The handheld fiber laser welding machine widely used in cabinet kitchen, staircase elevator, shelf, oven, stainless steel door and window guardrail, distribution box, stainless steel furnishings and other industries.
Vmade is Laser Welding, Cleaning Machine Supplier. We have a whole set of quality management system to guarantee the quality of Laser Welding and Cleaning Machine as well as after sale service.
>>
