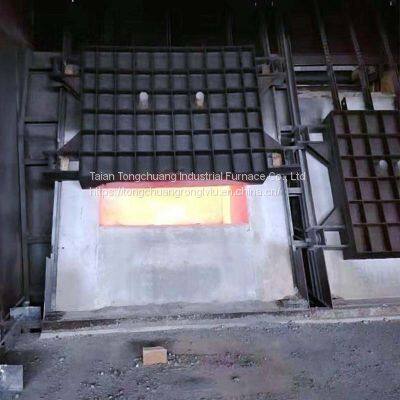

Aluminum melting furnace is a new type of energy-saving furnace developed and designed according to the aluminum smelting process, which can well consider the aluminum smelting process: strict aluminum alloy composition, unsustainable production, large single furnace volume, improve efficiency, reduce corrosion, improve product quality, reduce labor efficiency, improve worker standards and improve productivity. It is suitable for intermittent work, mutual alloy and waste smelting.
It is mainly used for melting and batching of aluminum and aluminum alloy to ensure the requirements of casting and rolling process.
Technological process: the charge is loaded into the softening bed, the softening bed until the charge is leveled, the charge is leveled until it is completely melted, and the aluminum liquid is heated.
Main Type:
SN
| Specification
| HZL-3T
| HZL-5T
| HZL-6T
| HZL-8T
|
1
| Furnace Size
| Φ2250mm×3385
| Φ2420mm×4120
| Φ2420mm×4630
| Φ2660×4830
|
2
| The rate of Upward
| 50s
| 55s
| 1min10s
| 1min15s
|
3
| The rate of decline
| 30-40s
| 40s
| 50-55s
| 55-60s
|
4
| Furnace rotation speed
| 2r/min
|
5
| Transmission motor
| 11kw-6P
| 15KW-6P
|
6
| Universal coupling
| SWC-BH150
| SWC-BH180
|
7
| Transfer method
| Main motor: sprocket chain rotation / Barrel: ring type track and pallets friction drive
|
8
| Automatic fuel pump
| GDB-4
|
9
| Ash capacity
| 3T
| 5T
| 6T
| 8T
|
10
| Ash feeding method
| Half round ash bucket rotary forklift feeding
|
11
| Ash way
| Driven by hydraulic cylinder, the furnace body tilts and rotates to release ash
|
12
| Recovery rate
| >80%
|
13
| Distributed dust removal air volume
| 20000m³/h
| 25000m³/h
| 25000m³/h
| 25000m³/h
|
14
| Suction flue gas temperature
| <200℃
|
Basic performance characteristics：
1. Waste heat recovery and reuse is equipped with a complete flue gas recovery and gas collection hood at the furnace mouth to recover and reuse the flue gas discharged from the furnace, which saves energy and ensures the working environment and the health of workers.
2. The aluminum liquid temperature control precision is high. The perfect control system and accurate temperature control system greatly improve the temperature control precision of the aluminum liquid in the furnace and improve the product quality.
3. The furnace lining design is reasonable. The refractory design of aluminum alloy smelting furnace fully considers the different working conditions and load changes of molten pool side wall and furnace bottom, and makes targeted structural design respectively, which is more reasonable.
4. The whole pouring method is adopted, and a brand-new metallurgical furnace pouring method - whole pouring is adopted. This pouring method makes the aluminum melting furnace have good overall structure, no brick joint, not easy to leak and crack, so that the furnace can operate stably for a long time.
5. Long service life our company adopts a number of new technologies for design and construction based on many years of production and construction experience of large aluminum melting and holding furnace, such as "sub bin" pouring, convex and concave locking between blocks, reasonable setting of expansion joints, etc. these effective construction technologies can ensure the service life of the furnace ≥ 3 years.
>>
