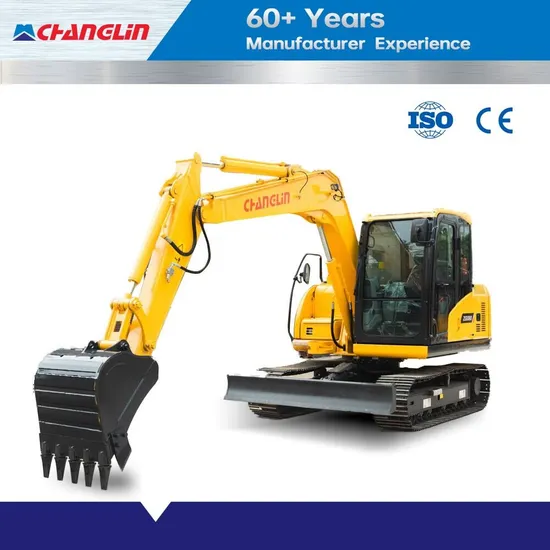

Changlin Factory Price 6t Small Crawler Hydraulic Excavator Construction Equipment with CE

Product Description

Product Description
CHANGLIN ZG065S Fixed Kubota or WEICHAI EFI engine (conforming to Stage III emission regulations), powerful, energy efficient, reliable and durable; advanced negative flow hydraulic system, comfortable operation, high operating efficiency, excellent cost performance; full power control, four power modes to adapt to different work; reliable and accurate fuel injection system, real-time control of fuel injection, making combustion more complete, fuel efficiency; full 3D modeling and finite element analysis technology to ensure the reliability and stability of structural parts.
Based on the above advanced technology, CHANGLIN ZG065S has been widely using in construction sites such as building construction, mining engineering, water conservancy project and etc.
•new generation of high-power EFI engines with strong power, low fuel consumption and high reliability
•New hydraulic system, large displacement main pump, large flow main valve, large flow area, small pressure loss, more reasonable flow distribution, better coordination and easier operation
•Equipped with large-caliber cylinders, optimizing the arrangement of each key hinge point, improving the digging force of the whole machine, setting the automatic supercharging function, and automatically increasing the digging force as the load increases
•New generation control system intelligently adjusts the hydraulic absorption power according to the working conditions, and optimizes the system matching to ensure the full performance of the whole machine.
•Equipped with high-resolution, high-brightness 5.7-inch color anti-glare monitoring instrument, intelligent electronic monitoring system, with vehicle maintenance information prompts, fault self-diagnosis and alarm and other functions
•Safe and reliable new cab with automatic air conditioning
Product Parameters

	ITEM		ZG065S
Dimensions	Operating weight	Kg	5960
	Rated bucket capacity	m3	0.22
	Overall length	mm	5855
	Overall width	mm	1880
	Overall height	mm	2585
	Trunable width	mm	1780
	Cabin height	mm	2585
	Groundclearance of counterweight	mm	710
	Engine cover height	mm	1635
	Min. ground clearance	mm	300
	Tail length	mm	1655
	Turning radius of turnable	mm	1655
	Wheel base of track shoe	mm	1990
	Chassis length	mm	2560
	Chassis width	mm	1880
	Track shoe gauge	mm	1480
	Standard track shoe width	mm	400
Performance	Max. traction	KN	50
	Travelling speed (H/L)	Km/hr	4/2.6
	Swing speed	rpm	11
	Gradeability	Degree(%)	70
Working Range	Maximum digging radius	mm	6200
	Ground maximum digging radius	mm	6060
	Maximum digging depth	mm	3850
	Maximum vertical digging depth	mm	3000
	Maximum digging height	mm	5785
	Maximum dumping height	mm	4075
	Min. front turning radius	mm	2395
	Bucket digging force	kN	48
	Stick digging force	kN	32.3/29
Engine	Model		Kubota V2607T WEICHAI WP3.2
	Type		4-cylinder in-line, four-stroke turbocharger
	Emission		Tier III
	Displacement	L	2.615/3.17 L
	Rated power		36kw@2000rpm/ 36.8kw@2200rpm
	Max. torque	N.m	206.9N.m@1100-1500rpm 220N.m@1400-1700rpm

Company Profile
Our Advantages
After Sales Service
Packaging & Shipping
FAQ
Q1:Are you original manufacturer?
A: Yes, we CHANGLIN are an official leading manufacturer in construction machinery. We set up juint venturers in 1990s.
Q2: What kind terms of payment can be accepted?
A: L/C, T/T, D/A, D/P, Western Union (can be) could be accepetd.
Q3: Which incoterms can we work?
A: FOB, CFR, CIF are the usual trade terms.
Q4: What about the delivery time?
A: 7-30 days after receiving the deposit.
Q5: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occurs first.
Q6: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, EAC, EPA(USA)CCC.
Q7: Do you accept OEM or ODM?
A: We can provide OEM or ODM manufacturing service Accept product customization on special working device, color & brand requirement.
Q8: Can you provide online technical services?
A:Yes, the digital service team is able to provide online technical services via shooting video, remote real-time video link,

---
