Product Features 12V,2A,split power adapter can be used to power equipment Products Description Product parameters

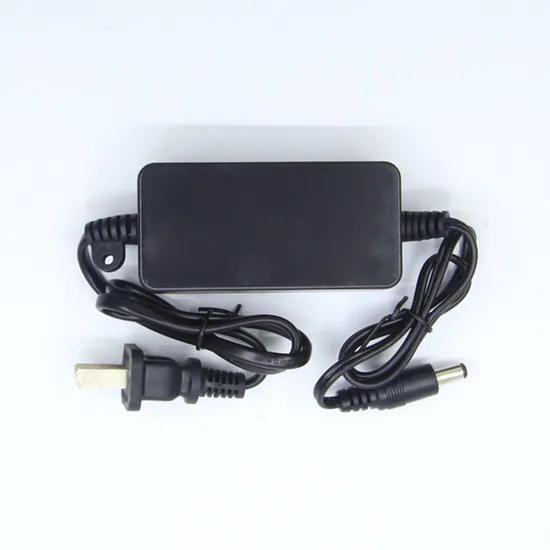

| Name | 12V,2A,split type,DC head power adapter | |
| Physical Specifications | A-side interface | CCC plug |
| | B-side interface | open wiring (two wires) |
| | Wire Construction | 22# (17/0.16AS)*2F |
| | Wire structure | 26#×2P+26#×2C+AB |
| | Coating material | PVC |
| | Wire color | black |
| | Connector type | open wiring (two-wire) |
| | Applicable scenes | Static |
| Electrical Specifications | Input voltage | 90~264 VAC |
| | Input current | 0.7 A |
| | Output power | 24 W max |
| | Output voltage | 12 V |
| | Output current | 0 A ~ 2 A |
| | Current overload protection | 3.1 A ~ 6.5 A |
| | Voltage overload protection | 18 V max |
| Electrical specifications | Mean time to failure | 50,000 hours (Telcordia SR-332 Issue 02 (2006) as standard) |
| Other Information | Operating temperature | 0°C ~ 40°C |
| | Certification | CCC |
| | Package | Individually wrapped bag |
