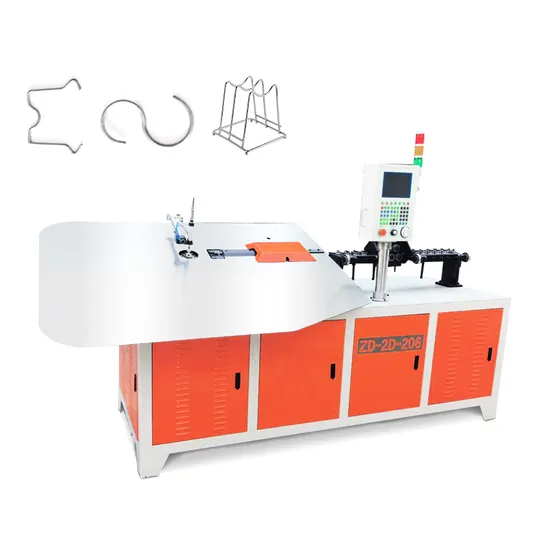

High-Speed CNC Wire Forming 2-6mm CNC Stainless Steel Wire Bending Machine

Product Description

high-speed CNC machine tool wire forming 2-6mm steel wire diameter CNC stainless steel wire bending machine Product Description
Advantage of 2D CNC Wire Bending Machine:
1.Our wire bending machine use the imported servo motors and reducer(Taiwan brand)
2.The reducer use oblique gear tooth,it will be more precision, others reducer use straighten gear tooth ,
it is easy to broken.
3.our machine frame is 6*6cm tube
4.Our machine weigh is 950kg, other machine weight only 600kg.
5.we can guarteen our machine quality for more than 10 years.
6. Automatic straightening, automatic cutting, automatic bending, no interference, the efficiency is 4-5 times that of traditional models;
7. The inner and outer molds can be rotated and lifted, and the operation is simple and easy to learn;
8. The overall use of servo motor control, eliminate backward hydraulic system, to prevent noise and oil;
Design concept of 2D CNC Wire Bending Machine:
1. The machine is used instead of labor, without the need to straighten the material and without the need to open the mold;
2. Wire forming machine is suitable for iron wire, steel wire, stainless steel wire and non-ferrous metal wire (including round wire, square wire, flat wire), can be bent into square, round, hexagonal, oval and various irregularities Shaped flat wire shape;
3. Suitable for wire mesh basket processing and various handicrafts, hardware kitchen and bathroom racks, daily necessities hardware, auto parts, sun visor skeleton, square snake spring, special-shaped spring, pet cage breeding cage, supermarket hook, bicycle zero Various wire forming for accessories, lighting lampshades, garden flower stands, etc. Product Parameters
Technical parameter of wire bending machine

Model	ZD-2D-206	ZD-2D-308	ZD-2D-4010
Number of shaft	3	3	3
Process wire diameter	2-6mm	3-8mm	4-10mm
Number of wire feeder	3 suits	4 suits	4 suits
Applicable wire	Round wire, flat wire, square wire (applicable to any wire material)	Round wire, flat wire, square wire (applicable to any wire material)	Round wire, flat wire, square wire (applicable to any wire material)
Data storage	10000 data, 300 data as a group	10000 data, 300 data as a group	10000 data, 300 data as a group
Servo motor total power	5.1kw	6.6kw	9.5kw
Action direction	Both the inner and outer molds can be raised and lowered, and the positive and negative bending	Both the inner and outer molds can be raised and lowered, and the positive and negative bending	Both the inner and outer molds can be raised and lowered, and the positive and negative bending
Feeding accuracy	±0.1	±0.1	±0.1
Maximum bending speed	300 rpm, angle ±180°	300 rpm, angle ±180°	300 rpm, angle ±180°
Input power	380V, 50HZ/60HZ	380V, 50HZ/60HZ	380V, 50HZ/60HZ
Machine weight	950kg	950kg	1400kg
Machine size	2900*950*1400mm	3100*950*1400mm	3250*1150*1500mm
