200-300 Tph River Stone Crushing Plant for Sale

Product Description

200-300 Tph River Stone Crushing Plant for sal

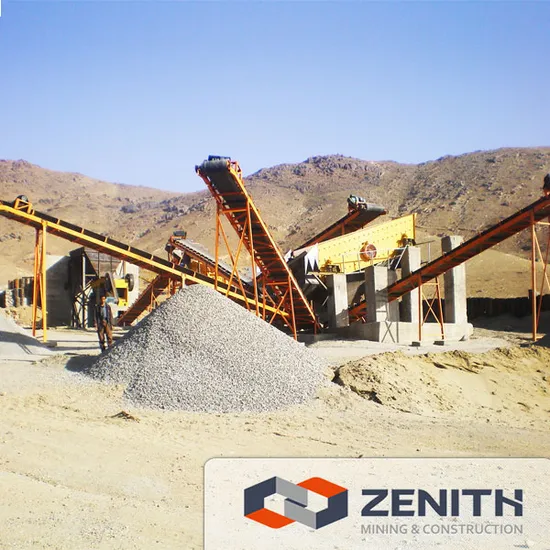

Stone Crushing Plant introduction:

Stone Crushing Plant means the whole production line that large stone materials are crushed granular shape by many crushing equipments. The crushed Stone Crushing Plant produced by our company can provide customers with many specifications, it has the characters of cover small area and fine finished product size, and it is convenient to operate because of it equipped with advanced electrical control operating system.
In addition, according to customers' demand to material specification and stones purpose, we can combine different models together to meet various needs. We provide comprehensive service according to customers' production site and try our best to produce the best production line.
Stone Crushing Plant contains :
1.vibrating feeder
2.jaw crusher
3.impact crusher
4.vibrating screen
The design capacity is from 50t/h to 500 t/h. To meet customer's specific requirement, we can also add other equipments such as cone crusher dusr catcher on the crushing plant.
Process of Stone Crushing Plant:
Big materials are fed to the jaw crusher evenly and gradually bu vibrating feeder through a hopper for primary crushing. After first crush, the material will transferred to impact crusher by the belt conveyor for secondary crush. The crushed materials will then transferred to vibrating screen for separating. After separating, the parts that can meet standard will be transferred away as final products while the other parts will be returned to impact crusher thus forming closed circuit. Size of final products can be combined and graded according to the customs' specific equipment.
Technical data of Stone Crushing Plant:

NO.	Equipment	Model	Power(KW)	Number
	Hopper	LC3000X4000		1
I	Vribrating Feeder	GZD960X3800	11	1
II	Jaw Crusher	PE600x900	55	1
III	Cone Crusher	S36"	75	1
IV	Vribrating Screen	3YK1860	22	1
Belt
NO.	Name	Length(m)	Power(KW)	Number
B1	B800	25	11	1
B2	B800	25+8	11+5.5	1
B3	B800	23	11	1
B4	B650	25	7.5	1
B5	B500	20	5.5	3
B6	B500	15	5.5	1

---
