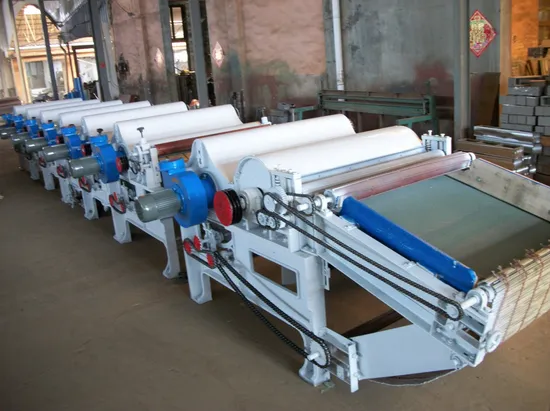

Textile Waste Recycling Machine in Spinning Mill Tears and Opens Yarn Clothing Scraps Into Fibers Recycle Cotton Machine

Product Description

1.Description of Textile Waste Recycling Machine
Recycle kinds of textile waste ( cotton fabric polyester , knitting hosiery fabric ,denim waste, hard waste tread yarn , clothing and garment rags) get the fiber from these waste enable to use for rotor spinning and other textile business purpose , make good use of waste material save cost make benefit , normally use in spinning mills garment mills weaving mills cotton mills non-woven mills and fabric cotton waste processing mills .
2.Features Mainly release fiber, cotton, textile material, such as through tear at the tangle of large fiber loose solution into small pieces or beam, at the same time accompanied by blending in the process of release, in addition to the complex role.Opening machine is usually consists of a pair feeding roller or feed roller and an opening of cylinder, the opening Angle of nails or mounted on the cylinder or comb needle cloth or porcupine goons, for opening more completely, some still in work roll and strip roller mounted on the cylinder.Different structure makes its opening effect, mixing effect, the effect of removing impurity have obvious differences, so on the different requirements of the production line should adopt different forms of opening machine.Also can according to the processing of materials to choose opening machine, comb again after the opening of fiber feeding machine for processing.
TECHINICAL DESCRIPTION OF EQUIPMENTS
Fiber Recycling Line:2*GM600+5*GM250

NO	ITEM	DESCRIPTION
1	Model	2XGM600+5XGM250
		RSpinning products
2	Installation dimensions	L15200W4000H4975(mm)
3	Weight	About 7200KGS
4	Total power	22KW+18.5KW+7.5KW+5.5*4
5	Working width	1000mm/ UnadjustableR
		1300mm/ Unadjustable
6	Main roller	R6 channels/Φ600/Teeth wire 1st and 2nd units	R8 channels/Φ250/Teeth wire 3rd to 7th units
7	Capacity	£150-220Kg/h under the working width 1300mm
		R120-180Kg/h under the working width 1000mm
		Depending on the raw material and product requirements(length of fiber), also the correct operate
8	Way of control	Electric control system
9	Bearing	KOYO/Or according to the customer's requirements
10	Print Color	According to the customer's requirements
11	The control cabinet and panel	Digital display instrument, and equipped with knob regulator, professional electric schematic diagram
12	Note	CNC cutting equipment and machining center equipment will be used in the manufacture of the machine. All rotating shaft through dynamic balance test. Shaking range must be less than + / - 0.55 mm, and does not influence the main rollers (based on the correct installation and the base must be in the same plane under a highest speed)

---
