Fully Automatic Glue Lamination Kitchen Towel Toilet Paper Making Machine Production Line

Product Description

XY-TQ-A-D Fully automatic glue lamination kitchen towel toilet paper making machine production line
This production line consists of Wall Type Automatic Rewinding Machine, Double Channel Log Saw and Semi-automatic Packing Machine. From jumbo roll paper into the finished rollers, the whole line work smoothly and run stable, saving the labor cost and reducing the labor strength. It's best choice for the producing hygienic paper products. Video Link:https://youtu.be/7FzerhVdpsM

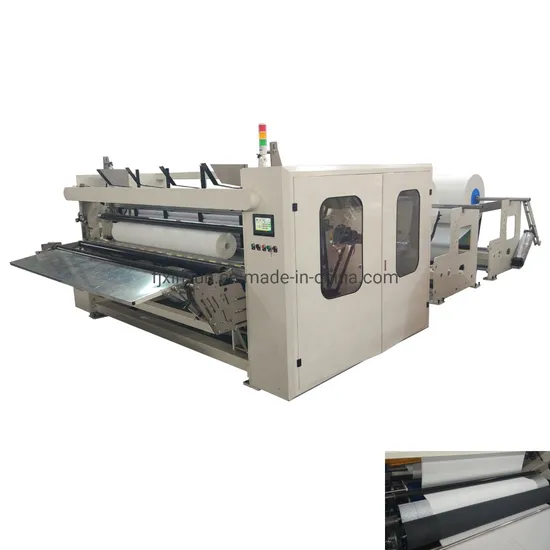

XY-TQ-B Full Automatic Toilet Paper Rewinding Machine Automatic toilet paper rewinding machine is for toilet paper roll processing. Machine have core feeding unit, can do both with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements. The production process is: Unreeling - Embossing - Perforating- Lamination- Rewinding- Tail-gluing- Edge trimming---Automatic core loading. Video Link: https://youtu.be/SvLiLj1yXyQ Function and Features: 1. Automatic core feeding system, automatic log pusher after rewinding, then rewinding the new log again. 2. Automatic edge-trimming, core feeding, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost. 3. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen. 4. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range. 5. Three horizontal type back stands, pneumatic loading system, with wide driving flat belts; each jumbo roll can be adjusted independently. 6. Embossing Unit: adopt point to point embossing rollers, making the two layers match well, the paper is soft and has clear patterns. 7. Adopt jogging switches for wearing the paper, easy and safe to operate.

Model	XY-TQ-B Automatic rewinding toilet roll paper making machine
Jumbo Roll Max Width	2800mm (Other size can be specified)
Jumbo Roll Diameter	Φ1200mm(Other size can be specified)
Jumbo Roll Inner Diameter	3inches(76.2mm) (Other size can be specified)
Perforation Distance	4 anvil Blades(115mm)(Other size can be specified)
Finished Product Diameter	Φ90~φ280mm
Finished Product Core Diameter	φ38~φ76mm
Program Controller	PLC( INVT)
Unwind Stands	2 Stands(Need to be specified)
Production Speed	0~230m/min
Pneumatic System	3HP Air Compressor, Minimum Pressure: 5kg/cm 2Pa(Provide by user)
Edge-Line Embossing	Steel to steel (Pneumatic Control)
Full Embossment	Steel to rubber.

XY-AI-280 Full Automatic Double Channel Log Saw Functions and Features: XY-AI-280 Double Channel Log Saw Machine is used for cutting the toilet paper roller and kitchen towel paper roller, it's with high automation and efficient. Adopts advanced servo driving system, frequency conversion speed regulating, PLC control and touching screen operation. Video Link:https://youtu.be/hELrzu5XPUI

Model	XY-AI-280 Log Saw Machine(Double Channel)
Jumbo Roll Width	2200~2800mm (Other size can be specified)
Jumbo Roll Diameter	Φ100~φ120mm(Other size can be specified)
Design Speed	120Cuts/min
Stable Speed	100Cuts/min
Grinding System	Pneumatic Sharpen, grinding time can be set
Driving System	Delta/Mitsubishi Servo Motor
Power	11KW
Overall Dimension	6500*2500*2000mm (Other size depends on model and configuration)
Blade Diameter	610*68.3*3.8
Voltage	380V 50HZ
Weight	About 4T

XY-AI-398A Semi Automatic Multiple Rolls Packing Machine
Functions and Features:
This machine work with toilet paper rewinding machine, it is customized, can special made to meet different market requirements.It's easy to operate: Insert the prefabricated bag into output hole, press the jog switch, it will automatically put rolls into bag, meanwhile cutting and sealing. Video Link:https://youtu.be/MMgv1zoox64

Speed	8-10 bags/min
Power	7.5 Kw(220V 50Hz single phase)
Air supply	0.4-0.5 MPA(supplied by client)
Roll size	Customized design according to your request
Packing way	Pack 4,6,8,10 rolls in a bag
Dimension	4550×1050×1750 mm

XY-SD-B Automatic Paper Straw Making Machine
Function & features:
1. Automatic high speed multi-cutters paper drinking straw making machine.
2. The machine is used for making paper straw, and small paper tubes.
3. Automatic cutting, automatic falling tube, automatic speed changing and reverting.
4. Computerized PLC control, touch screen man-machine interface operation.
5. Round knife cutting, incision more smooth, and stable performance.
With online multi-cut blades, no need secondary cutting, save labor and time. Video Link:https://youtu.be/xghI38XVXJc

speed	10-20 m/min
Kraft paper width	50~70mm
Paper Tube diameter	25mm~100mm (can be customized)
Paper tube layers	2 ~ 30 layers
Paper grams amount	150-400 gsm
Reel Length	adjustable (maximum: 3.0 m)
Defect rate	≤2%
Power	4.0KW 380V 50HZ
Equipment Size(L*W*H)	main machine: 2950*1700*1800mm Glue buckets device: 1250*850*1200mm
Weight	1500Kg

Related Products
XY-TQ-A-C
XY-TQ-A-H
Packing and Shipping
Workshop
FAQ
Q: Are you trading company or manufacturer ? A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
After Sales Servies
Why buy Machine from Fujian Xinyun Machinery Development Co.,Ltd ?
1. Good quality of machine with reasonable price.
2. Good service: Any question from customer will be reply within 24 hours.
For all the machines we sell, we will offer two-years guarantee for free and all life maintenance.
We deliver a USB dish of Operation Video with machine,it will help customer to work the machine easy. After the machines arrive, the sellers shall send technician to install the production line(if need). And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food, transportations and accommodation in buyer's city.
