Yifan Yf-Fx Weather RS485 Modbus 0-360 Degree Wind Direction Sensor

US$14.20
1-9 Pieces
US$8.50
10+ Pieces

Basic Info.

Model NO.
YF-FX
Display
Pointer
Detection Method
Contact
Connection Type
Wire
Pressure Resistance
Without Pressure Resistance
Anti-jamming
Anti-jamming
Shakeproof
Shakeproof
Noctilucence
Without Noctilucence
Waterproof
Waterproof
Weight
50-100g
Transport Package
Carton
Trademark
yifan
Origin
China
HS Code
5302
Production Capacity
10000pieces/Year

Product Description

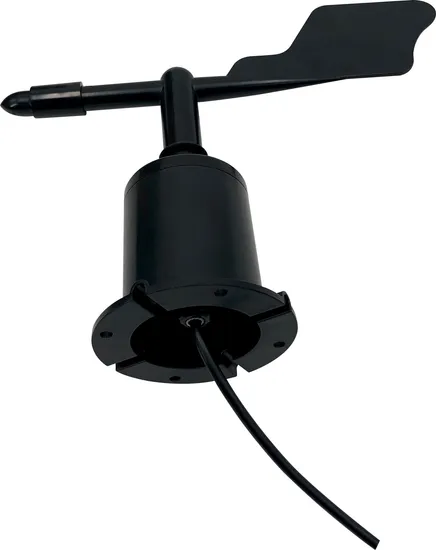

YF-FX wind direction transmitter is compact and lightweight in appearance, easy to carry and assemble. Its new design concept can effectively obtain wind direction information. The housing is made of polycarbonate composite material, which has good anti-corrosion and erosion resistance characteristics, ensuring that the transmitter will not deform during long-term use. At the same time, it is matched with a smooth internal bearing system to ensure the accuracy of information collection. Widely used for wind direction measurement in greenhouse, environmental protection, meteorological stations, ships, docks, aquaculture and other environments, RS485 output, customizable protocol, standard MODBUS protocol.
Functional features:
1. Range: 8 indication directions
2. Anti electromagnetic interference treatment
3. Adopting high-performance bearings, with low rotational resistance and precise measurement
4. Polycarbonate shell, with high mechanical strength, hardness, corrosion resistance, and rust resistance, can be used outdoors for a long time
5. The equipment structure and weight have been carefully designed and distributed, with small moment of inertia and sensitive response
6. Standard ModBus RTU communication protocol, easy to acces
Equipment List:
1. One transmitter device
2. Install 4 screws
3. Certificate of conformity, warranty card, etc Product Parameters
DC power supply (default) 10~30V DC
power waste ≤0.4W
working temperature -20ºC~+60ºC,0%RH~85%RH

communication interface
485 MODBUS-RTU
Baud rate:9600(Can be customized)
L:8 Bit
Parity check method:N
Stop bit length:1 BIT
ModBus ADDR:1(Can be customized)
measuring range 8 indication directions
Dynamic response time ≤0.5s
