Product Details
Product Description
Product Description

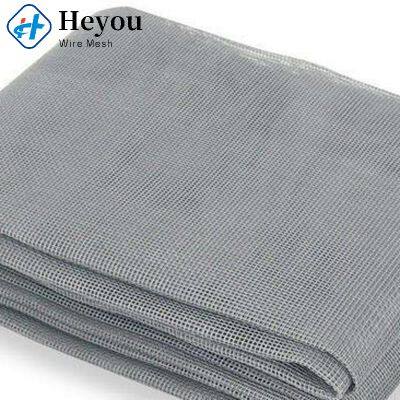

Fiberglass Mesh
Glass fiber mesh cloth is based on glass fiber woven fabric, and is coated with polymer anti-emulsion soaking. It has good alkali resistance, flexibility, and high tensile strength in the warp and weft directions, and can be widely used for heat preservation, waterproofing, fireproofing, and cracking resistance of internal and external walls of buildings.
Feature
Glass Fiber Mesh cloth
1)Good chemical stability. Alkali resistance, acid resistance, water resistance, cement erosion resistance, and other chemical corrosion resistance; strong adhesion to resin, easily soluble in styrene, etc.
2)High strength, high modulus, light weight.
3)Good dimensional stability, stiff, smooth, not easy to shrink and deform, and good positioning.
4) Good toughness. The impact resistance is better.
5) Anti-mildew and insect-proof.
6) Fire prevention, heat preservation, sound insulation and insulation.
Specification
| Project | unit | 140g/m2 | 160g/m2 | 180g/m2 | 200g/m2 | 220g/m2 | 250g/m2 | 280g/m2 | 300g/m2 |
| Length | m/roll | 1400 | 1300 | 1100 | 1000 | 800 | 700 | 600 | 600 |
| Dicke | mm | 0.6±0.2 | 0.8±0.2 | 0.9±0.2 | 1.0±0.2 | 1.1±0.2 | 1.2±0.2 | 1.5±0.2 | 1.5±0.2 |
| Breite | mm | 1020 |
| Shrink rate | % | ≤2 |
| Moisture content | % | ≤0.4 |
| Eccentricity | % | ≤±6 |
| tensile strength | protrait | N/5cm | ≥280 | ≥320 | ≥450 | ≥500 | ≥550 | ≥650 | ≥720 | ≥800 |
| transverse(MD) | N/5cm | ≥280 | ≥300 | ≥400 | ≥450 | ≥500 | ≥550 | ≥700 | ≥800 |
| elongation at break | protrait | % | 18-25 | 20-25 | 25-35 | 30-40 | 30-40 | 30-40 | 35-45 | 40-50 |
| transverse(MD) | % | 18-25 | 20-25 | 30-25 | 30-40 | 30-40 | 30-40 | 35-45 | 40-50 |
| tear strength | protrait | N/5cm | ≥70 | ≥100 | ≥100 | ≥120 | ≥140 | ≥160 | ≥250 | ≥250 |
| transverse(MD) | N/5cm | ≥70 | ≥80 | ≥100 | ≥120 | ≥140 | ≥160 | ≥250 | ≥250 |
| Each roll length | 10m, 20m, 30m, 50m-300m |
| Width | 0.5m-2m |
| Application | Wall Matierals |
| Length | 50m-300m |
| fiberglass sample | free sample |
| packing | Plastic Bag , PE Bag , Woven Bag |
| colors | White Blue Orange Yellow etc |
| coating | Acrylic Glue / SBR Glue |
| Customer Logo | customize |
| Delivery time | within 5 working days for 1*40HQ |
applications
1).75g / m2 mesh fabric used in the reinforcement of thin slurry, to eliminate small cracks and scattered throughout the surface ressure.
2).110g / m2 mesh cloth is widely used in indoor and outdoor walls, prevent the various materials (such as brick, light wood, prefabricated structure) of treatment or caused by a variety of expansion coefficient of wall crack and break .
3). 145g/m2 mesh fabric used in the wall and be mixed in various materials (such as brick, light wood, prefabricated structures), to prevent cracking the scatter and whole surface pressure, especially in the external wall insulation system (EIFS ).
4). 160g / m2 mesh fabric used in insulator layer of reinforcement in the mortar, through shrinkage and temperature changes by providinga space to movement maintain between the layers,prevent crack and rupture due or temperature change.
>>
