Advanced CNC Router Machine for Precision Wood Carving

Product Description

CNC ROUTER
Base frame, solid, heavy duty construction. The base frame is a 5 axis XNX processed steel frame that is welded, stress-relieved and precision machined.
Well-known brand water-cooled spindle, high speed, high torque, durable bearing and long service life. (Optional air-cooled spindle or other brand spindles like HSD)
Independent control box. Standard stepper driver and motor optional servo driver and motor. Independent electrical box, save space. Support computer and DSP handle control.
Heavy-duty thickened steel body. Selected thickened steel, tempered, sandblasted, and quenched to prevent deformation and cracking, strengthen and thickened body make.
T-shaped table and vacuum table are optional. The vacuum table has strong adsorption force and can strongly adsorb materials of different sizes. High density, not easy to deform, high temperature resistance.
Square liner rail, Taiwan HIWIN rack guide rail, high precision, fast speed, high-precision grinding rack, double-row sliding block. Work stability and durability.
Specification:

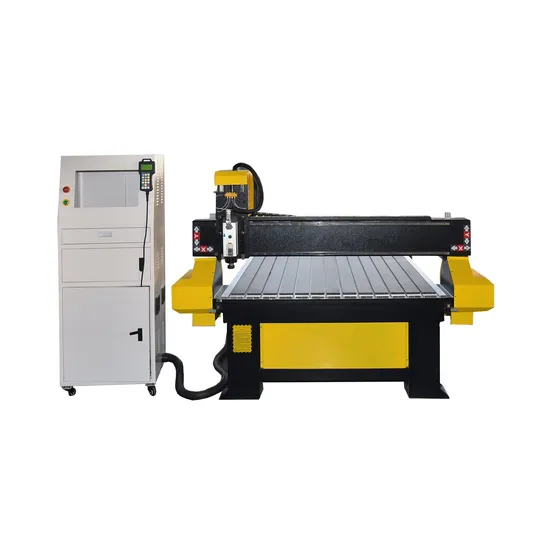

ZD1325 CNC ROUTER
Model	ZD1325
Working range	1250x2500mm
Working height	200mm
Working speed	0-18m/min
Processing speed	0-10m/min.
Drive method	Changzhou Anhao 450B stepper motor
driver	Shenzhen Leisai 860 stepper driver
Spindle power	Changzhou Farright 3.2kw Water cooled (3.5kw Air-Cooled optional) variable frequency spindle motor *2
XY guide rail and transmission	20 square rail, XY high precision rack drive
Z-axis guide rail and transmission	20 square rail, original TBI ball screw
Operating Voltage	220V/50hz(380V/50Hz)
Supported formats	*nc,G code,*uoo,*mmg,*plt
Control system	NCstudio
oil lubrication	Manual oil filling
Control cabinet	Independent control cabinet
Performance characteristics	Adopt gantry type structure, the guide rail support surface is stable, and the rack transmission mode, the transmission is stable, to ensure that the long-term high-speed operation does not deform and does not shake. Using linear guide, Y-axis is driven by double motors, with large load-bearing redundancy and long service life. Using double rack transmission, the operation is simpler The design is more user-friendly. Compatible with a variety of software, compatible with various design and production software such as type3/Artcam/Castmate/Jingdiao/Wentai
Scope of application	Furniture industry: cabinet doors, wooden doors, solid wood, panel, doors and windows, tables and chairs. Decoration industry: screen, wave board, large wall hanging, advertising board, logo production. Advertising industry: It can be engraved or cut on acrylic, chevron board, fron board, two-color board and other materials.

Company Introduction
Qingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine for more than 20 years. We perform a variety of services to not only supply our clients with top quality woodworking machinery but also adequate maintenance, spare parts and technical advice.We are committed to providing one-stop service for factory production. Relying on the favorable geographical advantages of Qingdao Industrial Park, we have formed a series of panel-type furniture equipment such as table saws, edge banding machines, and CNC routers, as well as solid wood woodworking machines such as :polishing machines ,palner machine,press machine etc,which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, and Australia.Bring our products and services for more than 66 countrys people and customers. We have established 7 complete system to gurantee all process of orders with timely and effective supervision and feedback .Our company has got ISO9001 international system certificate and CE security certificate for different kinds of machines.
Our Missions:
To provide customers with quality products and services, customer satisfaction is our highest criterion
Our Values:
Bring the highest quality and best advice for customer
Commitment to deliver the best we can in an ethical and professional manner
Continuously improve product technology and services to provide more customers with one-stop equipment procurement services.

SUCCESSFUL CASES

CERTIFICATE

PAYMENT AND LOGISTICS
TOP RATED
Recent activities CIFF FWM Shanghai Exhibition September 19,2024
FAQ:
Q:How to order?
A:Ask us → come to map to customize → use the situation to inform → receive our product design recommendation → negotiate details
Festival → Confirm the sample → sign contract/deposit → batch production → goods are ready → balance/delivery → further cooperation
Q:Which transportation method is available?
A:It is a special express delivery of shipping, the China Express Mail, and the Express Express can choose other transportation methods. Please contact us. If you need another shipping route.

---
