US$60,000.00-65,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Certification
GCC, CE, ISO9001
Types of Suspension Systems
Leaf Spring Suspension
Self-dumping
Not Self-dumping
ABS Anti-lock Braking System
ABS Anti-lock Braking System
Trailer Model
Container Trailer
Dimension
12500*2500*1650mm
Loading Capacity
40-80tons
Axle
13t/16t, Fuwa/BPW/Zy, etc
Tire
12.00r22.5 ; 315/80r22.5; 11.00r20; 12.00r20
Suspension
Mechanical Suspension / Airbag
King Pin
Jost Brand 2.0 or 3.5 Inch
Spport Leg
Jost Brand Two Speed
Side Beam
16mm Channel Steel
Tool Box
One Piece 1m *0.5m*0.5m
Specification
12500x2500x1700mm
Production Capacity
500/Month
Product Description

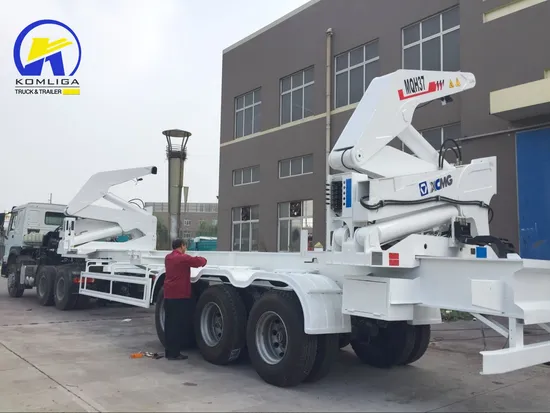

New 20 FT 40 FT Side Loader Container Side Lifter Semi Trailer for Sale Product Description
Product Parameters
| New 20 FT 40 FT Side Loader Container Side Lifter Semi Trailer for Sale |
| trailer model | Container Side lifter Traielr |
| Max. lifting capacity | 37T |
| Max. working range | 4000mm |
| Max. stabilizer outreach | 3200mm |
| Mass of sidelifter | 7250kg |
| Maximum gross mass | 40000kg |
| Outline dimension of semi-trailer(L×W×H) | 14100*2500*4000mm |
| Outline dimension of sidelifter(L×W×H) | 1020×2500×2490mm |
| Wheel base | 8000+1350+1350mm |
| Track(front axle/rear axle) | 1820/1820/1820mm |
| Front overhang / Rear overhang | -/2370mm |
| Approach angle/Departure angle | -/13° |
| Function | Transport 2*20ft and 1*40ft container |
| Axle | 13T/16T, FUWA/BPW/ZY, etc |
| Rim | 9.00*22.5/8.00-20/8.5-20 |
| Tire | 12.00R22.5 ; 315/80R22.5; 11.00R20; 12.00R20 brand can be optional |
| Suspension | Mechanical suspension(Germany type or America type) or Air suspension |
| Leaf Spring | 90(width)mm*13(thickness)mm*10 layer(especial for exporting market) |
| King pin | Jost brand 2.0 or 3.5 inch |
| Spport leg | Jost brand two speed |
| Main beam | Q345B steel |
| Side beam | 16mm channel steel (Material is Q235B steel) |
| Bottom Platform | 3mm checquered steel plate |
| Side wall | Optional |
| Brake chamber | Wabco re 6 relay valve; T30/30+T30 spring brake chamber; two units of 45L air tanks |
| ABS | Optional |
| Valve | Wabco valve (especial for exporting market) |
| Light | LED Light (especial for exporting market) |
| Voltage | 24V |
| Receptacle | 7 ways (7 wire harness) |
| Tool box | One piece 1m *0.5m*0.5m ( size can be customized) |
| Painting | 1 cost of anticorrosive primer, 2 coats of final paint, color advised by customer |
| | |
Packaging & Shipping
Shipping method for New 20 FT 40 FT Side Loader Container Side Lifter Semi Trailer for Sale :
Usually Our trailer can be shipped by Ro-ro ship or Bulk ship or 40hc container ship.
Packing Detail: Ro-Ro or Bulk base on the ship and port in your country. If the truck on the deck,we will spray antirust paint with
Main Products
| | | |
| 3 axles flatbed trailer | superlink flatbed trailer | 4 axles container trailer |
| | |
| Shacman tractor truck | Sinotruck howo head truck | Howo TX trailer head truck |
FAQ
| What's your MOQ? |
| One unit trailer or truck. |
| What is your lead time? |
| Usually it is 15-20 days after deposit received. |
| What is the warranty of the trucks? |
| 12 months about engine, axle and transimission, some spare part can be 18 months. And we can help you solve every problem about the truck by email and phone whole life. |
| What's your payment terms? |
T/T: 30% deposit by T/T,70% balance should be paid before shipment.
L/C: 100% irrevocable Credit of Letter. |
| If Our Vehicle/Trailer Can Couple With Your Tractor Head ? |
| You can tell me that you are using the Tractor/Primer Mover model or the distance between fifth wheel and the ground, we can design a height that matches your Tractor. |
| How about the after sales service? |
| We provide technical support and spare parts for long life time of our products. |
Company Profile
Jinan Komliga Industrial Co.,Ltd established in 2016 in Jinan, China. we are professional supplier for Chinese brand heavy truck and kinds of trailers as well as spare parts, Sinotruck, Shacman, Beiben, Foton, Weichai etc all fall in the scope of our business.
We can provide various trailers such as low bed semi trailer, flatbed container semi trailers, skeletal container semi trailer, side wall semi trailer, cargo box semi trailer, dump trailers, bulk cement trailer, fuel tanker trailer, stainless steel tank trailer, aluminum tank trailer and can be manufactured as special design.
We can export the SINOTRUCK and SHACMAN brand tractor head, dump truck, fuel tanker truck, water tanker truck, cargo truck, concrete mixture truck etc with great price and service advantages.
