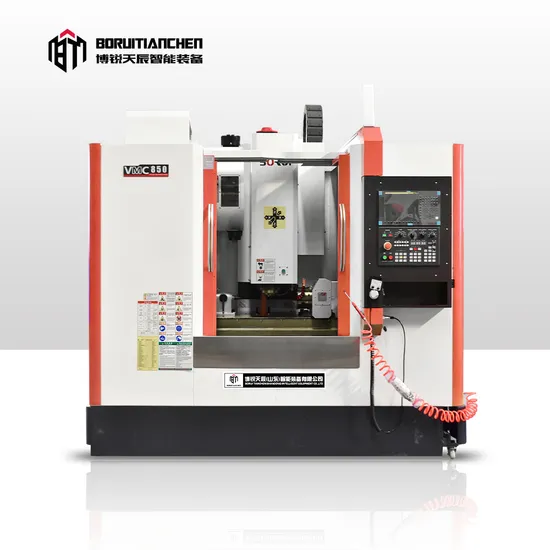

Vmc855 Economic High Precision CNC Vertical Machining Center

Product Description

VMC855 Machine Center Vmc Machine Milling 3 Axis Vertical Machine Center
Product Description

1. Adopting the world advanced numerical control system, the M60S series are servo-driven, ensuring the stability of the control system is high, the speed is fast, and the surface is smooth.
The advantages of high precision, the ability to make moulds, is the best choice for mold production.
2. All M60S series controllers are marked with RISC64 bit CPU.
3. Coordinate display value conversion can be freely switched (program value display or manual insertion quantity display switching)
4. Standard internal carrier profile function, working position coordinates and central point measurement functions.
5. Buffer correction function extension: can correspond to IC card/computer link B/DNC/MDI mode.
6. Edit the edit mode in the edit screen, and switch to edit or edit the whole page.
7. Graphical display function improvement: can contain the prop path information to fully display the work coordinates and the actual location of the props compensation
Product Parameters

Specifications	Units	VMC855
Table size	mm	1000x550
X axis travel	mm	800
Y axis travel	mm	550
Z axis travel	mm	550
Max. worktable load	kg	800
T slot(number-width-pitch)		5*18*100
Max. spindle speed	rpm	8000(Optional:10000/12000 )
Spindle taper	mm	BT40
Main motor power	kw	7.5/11
X/Y/Z rapid traverse speed	m/min	24/24/20
Cutting feed speed	mm/min	1-10000
Guide rail type		Linear rail
Distance from spindle axis to column surface	mm	550
Distance between spindle nose and worktable surface	mm	120-670
Positioning accuracy	mm	±0.008
Repeat positioning accuracy	mm	±0.005
Tool magazine		Arm 24 (disc type)
Max. tool diameter	mm	φ78 (Adjacent)/ φ120(Apart)
Max.tool weight	kg	8
Machine weight	kg	5800
Overall dimension	mm	2800X2400X3000

our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
