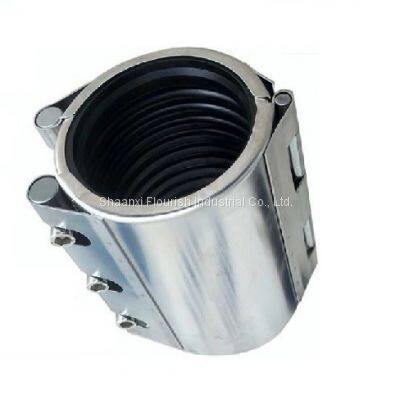

RCH Folding Type Pipe Repair Clamp / SS304 EPDM Long Type Pipe Leak Repair Clamp

Product Details

Product Description

Product Description

Name:	Repair Clamp	Material:	SS 304
Pressure:	3.2 Mpa	Liner:	EPDM /NBR
Type:	RCH-L	Size:	DN15-DN500
High Light:	RCH Folding Type Pipe Repair Clamp
	SS304 Long Pipe Leak Repair Clamp
	EPDM Pipe Repair Clamp

Product Description
RCH Folding Type Pipe Repair Clamp / SS304+EPDM Long Type Pipe Leak Repair Clamp
The pipeline repair clamp is mainly used for the rapid repair of pipeline leakage. It can quickly repair the aging and corroded pipeline trachoma and fracture without stopping the pressure and replacing the pipeline. It is easy to install and has high construction efficiency.

Size	OD (mm)	Pipe OD (mm)	Length (mm)	W/Pressure
DN25	34	33-35	100	3.0Mpa
DN32	42	41-44	100	3.0Mpa
DN40	48.6	47-49	100	3.0Mpa
DN50	60	59-62	139	3.0Mpa
DN65	76	74-79	139	3.0Mpa
DN80	89	87-92	203	2.5Mpa
DN100	114	106-110	203	2.5Mpa
DN125	140	137-143	203	2.5Mpa
DN150	168	166-170	203	2.5Mpa
DN200	219	217-221	255	2.0Mpa
DN250	273	271-275	255	1.6Mpa
DN300	325	323-327	255	1.6Mpa

The multifunctional pipe repairer is mainly used for the rapid repair of pipe leaks. It is easy to install, efficient
and can be operated without special tools.

---
