New Display Retractable Monitor Motorized Screen Lift with Two Sides FHD 15.6 Inch LED Monitor

Product Description

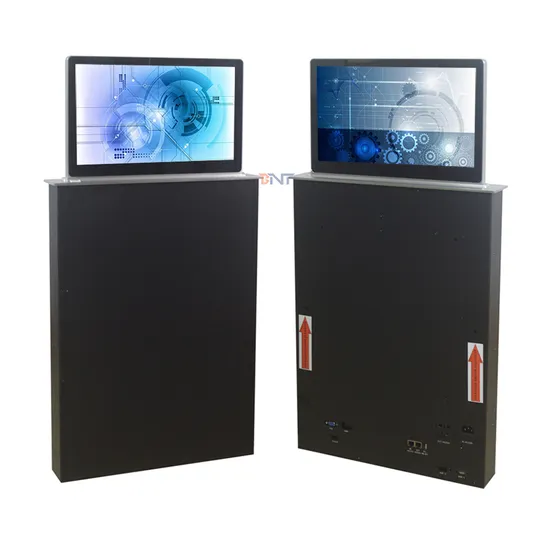

BNT new design double screen retractable lcd monitor motorized lift with 10.1 inch backside screen
Introduction:
Monitor screen lift mechanism is designed as advance hiding equipment with FHD screen and built in microphone for audio video conference system. 10.1, 13.3, 15.6,17.3, 18.5, 21.5, 23.6 inch FHD Screen for selection to meet the requirement of different monitor size.
Have models that microphone and screen work together/ separate.
It is widely use in conference system, audio video conference system, paperless conference system,etc.
1,Ultra thin design, only 80cm thickness smart mechanism integrated with full HD screen
2,Ultra light design, top surface panel, monitor shell and housing are all made of aluminum alloy, to help customer save shipping cost.
3,Front folding design, monitor could folding 40 to 65 degree to prefect presentation.
4, Motor drive working design, circuit board control motor to drive monitor lifting up/dowm automatically
5, Mechanism integrated with build in 15.6, 17.3, 21.5, 23.6 inch full HD screen or touch screen.
6, Lifting display mechanism included anti-accident system design, could anti-pinching hand protection for any accident.
Product Description:
All-aluminum structure chassis, small size, high-quality aluminum profile and CNC carved processing, elegant atmosphere.
The chassis is integrally formed, with fewer than four appearance screws, easy assembly, stable structure, and simple appearance.
Mechanical spring anti-pinch design, safety and humanization, and stable opening and closing of the door, avoiding the traditional
design of metal fatigue.

Model No.	AML-15.6B
Product Name	Retractable Monitor Lift
Meterial	Aluminum Alloy
Color	Black/Silver
Panel Size	450*80*5mm
Box Size	432*71*600mm
Cutout Size	434*73mm
Screen Size	377*238*10mm
Monitor	15.6 Inch FHD screen(16:9) + 10.1 Inch FHD screen(16:9)
Monitor Resolutions	1920*1080
Automatic Pitch Angle	20 degree
Interface	HDMI+VGA+USB Touch+USB+RS232 I/O Netowrk+Power
Adjustable Angle	0-30 Degree
Protection System	With Anti-pinch Hand Protect
Power Supply	220V-50HZ,110V/60HZ
Working Sound	Less than 15 decibels
Control Way	Switch Button/Remote Control/Central Control
Touch Option	12 finger piont capacitive touch screen
Screen Material	TFT screen material
Panel Button Detial	UP/DOWNS/STOP For Monitor Operation
	Front/Back For Angle Adjustable
	Signal Switching For HDMI To VGA
	Adjust Brightness And Color For Screen
Integrated Item Selection	Full HD Touch Screen
	Conference Syetem Discussion/Video/Voting Microphone
	Smart AIO PC
	Full HD Camera
	Office Automatic Paperless System

Conference system solution
Monitor screen lift mechanism is designed as advance hiding equipment with FHD screen and built in microphone for audio video
conference system. 10.1, 13.3, 15.6,17.3, 18.5, 21.5, 23.6 inch FHD Screen for selection to meet the requirement of different
monitor size. Have models that microphone and screen work together/ separate.
It is widely use in conference system, audio video conference system, paperless conference system,etc.
Standard English language operating system, other national languages can be set as needed.Screen pitch angle 0-30 degree
Built-in 13.3-23.6 inch high-definition 1920*1080P high-definition ultra-thin display, can be built-in touch screen, with front camera according as per requirements. 0-30 degree screen pitch angle, 0-60 degree models for selection.
The panel has a 1.8mm chamfered R3 design, which is more convenient for installation, no need to open a counterbore for the panel
Design with double screen for one frone 15.6 inch FHD screen + backside 10.1 inch FHD screen, material is TFT.
The backside screen can support name card or company details for your meeting room.Full aluminum alloy design
Ultra-light design, all aluminum alloy (Panel+screen frame+case box, including all the parts inside made by aluminum alloy material, )
Motorized by tank chain and mechanical gear, smooth, fast and quiet when working. Protecting function of LCD monitors by cutting the electricity off automatically.
Switch on LCD motorized lift panel, RF remote control, RS232 AND rs 485 central control for intelligent conference system.All-aluminum structure chassis, small size, super light and ultra thin design, high-quality aluminum profile and CNC carved processing, elegant atmosphere.
Anti-pinching design, safety protection, electro-mechanical damping principle, it will bounce back when encountering any resistance (closed door on the top panel). With finger protection function, when a person leaves their fingers inside it emits a beep sound and stops.
Other Product Selection:

Option	AML-13.3	AML-15.6	AML-17.3	AML-18.5	AML-21.5	AML-23.6
Monitor	13.3 inch FHD screen	15.6 inch FHD screen	17.3 inch FHD screen	18.5 inch HD screen	21.5 inch FHD screen	23.6 inch FHD screen
Material	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy
Screen	13.3 inch	15.6 inch	17.3 inch	18.5 inch	21.5 inch	23.6 inch
Resoltuion	1920*1080	1920*1080	1920*1080	1366*768	1920*1080	1920*1080
Color	Black/Sliver	Black/Sliver	Black/Sliver	Black/Sliver	Black/Sliver	Black/Sliver
