US$200,000.00
|
1 sets
(MOQ)
|
Basic Info.
Model NO.
NFJ1175E NFC1300RSE NFI200RSE NFS360E
Product Name
Electric Type Tracked Mobile Screen and Crusher
Crusher &Screen
Jw1175 Hc1300 Ih1213 3nyk2060
Max Feeding Size(mm)
100-700
Type
Mobile Screen and Crusher
After-sales Service
Full Life Cycle Industrial Services
Transport Package
Wooden Box, Steel Frame
Specification
20.5*3.5*3.75(m)
Production Capacity
1 Piece/Month
Product Description
ELECTRIC

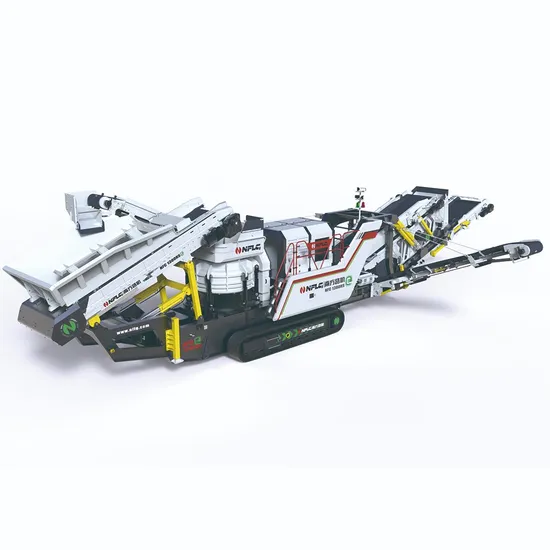

Tracked mobile crushing and screening production line
The tracked mobile electric drive crushing and screening production line in NFLG has made technical adjustment on the basis of the crawler diesel hydraulic version to continue to retain the tracked walking function.The whole machine is operated by electric drive (external electric or external generator set), which is more green, energy-saving, economical and efficient. All equipment share the tracked diesel version of the equipment, retain the core function, continue the high stability of the tracked diesel version of the equipment, to bring more choices for customers and higher business competitiveness. Product Description
Product Parameters
| Model | Crusher &screen | Throughput(mtph) | Maximum feeding size(mm) | Total power(kW) | Power of engine(kW) | Working state dimension(m) | Transportation dimension(m) | Weight(t) |
| NFJ1175E | JW1175 | 475 | 650 | 160 | 129 | 15.8×3.5×4 | 15.8×3×3.8 | 50 standard configuration |
| NFC1300RSE | HC1300 | 390 | 220 | 339 | 129 | 20.5×3.8×5.2 | 20.5×3.5×3.75 | 63.5 standard configuration |
| NFI200RSE | IH1213 | 450 | 700 | 295 | 129 | 21.7×3.8×5 | 20.3×3.6×3.8 | 67 standard configuration |
| NFS360E | 3NYK2060 | 500 | 100 | 67.5 | 129 | 16×21×7.1 | 18×3.7×3.6 | 34 standard configuration |
Detailed Photos
Company Profile
After Sales Service
FAQ
1 : Are you original manufacture?
A:Yes. we are NFLG, an official leading manufacture in construction machinery in China.
Core products cover:
A. Asphalt Mixing, Concrete Mixing and Dry Mortar Mixing (Engineering Mixing);
B. Mobile Crusher & Screen, Stationary Crusher & Screen and Sand Making and Shaping Equipment (Materials Processing);
C. Construction Waste Processing Solution, Waste Sludge & Soil Recycling Solution and Decoration Waste Processing Solution(Construction Waste Processing).
2:What kind of payment can be accepted?
A:Normally we can work on T/T term or L/C term.
3:Do you provide equipment operation training?
A:Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
4:What about the delivery time?
A:45 days after receving the deposit.
5:What about the warranty time?
A:12 months after shipment.
6.What about the Minimum Order Quantity?
A:The MOQ is 1 pcs.
>>
