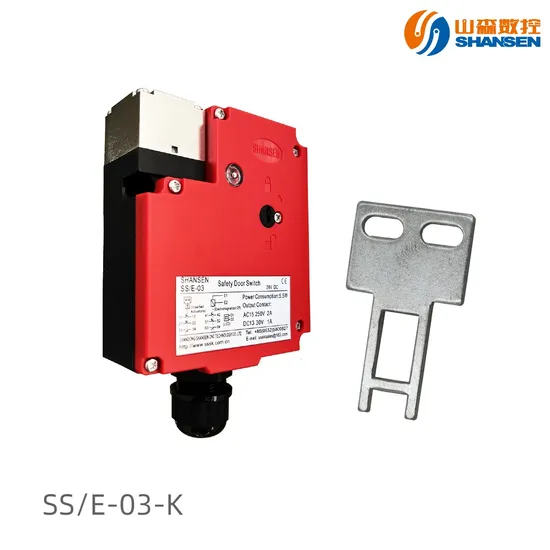

(SS/E-03-K) Metal Switch Head for 4-Way Adjustment - Square Safety Door Switch

Product Description

Metal switch head for 4-way adjustment
Spring force for unlocking by solenoid coil excitation
Assisted unlocking mechanism as standard

Locking method: Energized Unlocking
Independent circuits of indicator lights can respond to a variety of uses
Built-in 6 groups of contacts, can complete a variety of wiring methods


Model Description
Product Parameters
Contact capacity:

Rated voltage			30V	250V
Rated current	AC	Resistive load (AC-12)	---	4A
		Inductive load (AC-15)	---	2A
	DC	Resistive load (DC-12)	2A	0.8A
		Inductive loads (DC-13)	1A	0.4A

Solenoid Coil:

Rated voltage	DC24V	+10% -15%
Rated current	0.4A
Insulation class	Level B

Performance Specifications

Production standard	t/sdmtgm0007-2020
Operating environment	Better than pollution level 3
Ambient temperature	-5~40ºC
Relative humidity	45~80%
Protection class	IP67 (without induction port)
Mechanical service life	Not less than 1 million times
Electrical service life	Not less than 100,000 cycles (AC-12 250V 4A)
	Not less than 1 million times (24V AC/DC 100mA)
Tensile strength	2700N

Product Description

Production line
Company Profile
Certifications
FAQ
1.Q: Which trade term I can choose?
A: You can choose FOB,FCA
2.Q: How can I get quotation from you?
A: You can make the inquiry online on made-in-china, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 24 hours on work days, and within 48 hours on holiday.
3.Q: how can I make the payment?
A: We can make the deal on made-in-china online platform, you can pay by T/T . You can also pay to my company business bank account.
4.Q:What is your delivery time ?
A:The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
