Factory Hot Selling Car Maintenance Equipment Break Lathe Brake Drum/Disc Cutting Machine C9350c C9370

Product Description

Product description:
Technical parameter :
Feature:

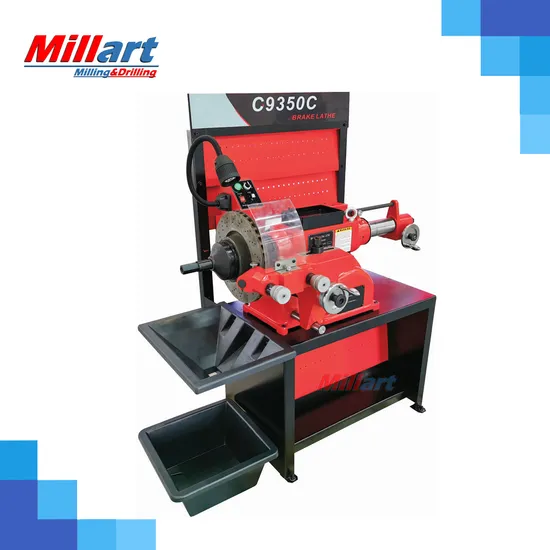

C9350C
Applicable for repairing medium & small brake disc/drum.3 spindle speed can be adjusted by changing belt position,
DC drive enables variable feeding speed.
2 motors separately for turning disc/drum
C9370
Applicable for repairing large, medium & small brake disc/drum.
3 spindle speed can be adjusted by changing belt position.
Mechanical feeding transmission ensures long working life.
Technical parameter :

Model		C9350C	C9370
Brake Disc	Diameter mm	178-368	178-457
	Thickness mm	48	48
Brake Drum	Diameter mm	152-450	152-711
	Depth mm	160	220
Spindle speed rpm		70,88,118	70,88,118
Cross feeding capacity mm/r		0-0.4	0.05/0.25
Spindle feeding capacity mm/r		0-0.4	0.05-0.5
Motor Power (kw)		0.75	0.75
Overall Dimensions(mm)		1200*900*1500	1280*1100*1445
N.WIG.W (kg)		290/330	300/340

Company information:
FAQ
Q: Are you a trading company or a physical factory?
A: We are a specialized physical factory for more than 10 years. Our machines also gained CE certificate, ISO9001 and EAC certificate.
Q: What's your main products of your company?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.

Q: Can you provide customized machine?
A: Yes, we provide customized service for customers to meet different requirements.


Q: Can we visit your factory?
A: Sure, we warmly welcome you to visit our factory at any time. The more you know about us, the more you will trust us! So you can rest assured on our quality machines and our best service.
Q: What's the Payment Terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
Q: What is your trade terms?
A: FOB, CIF ,DDP and CFR all acceptable.

---
