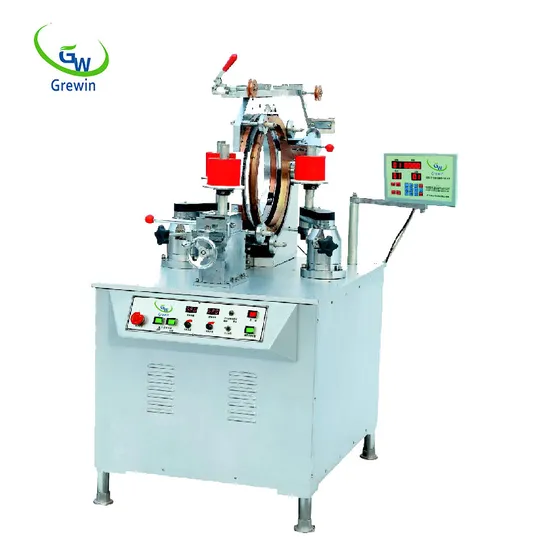

150mm Height Toroid Transformer Core Thread Wire Winding Machine

Product Description

Product Description
Automatic toroidal transformer winding machine adopt precision digital toroid controller, it's an accurately and reliability digital automatic toroid-taping machine. it is used for wrapping the insulation tape on the toroidal core and windings. it is best suited to toroidal inductor, toroidal transformer, toroidal current transformer, toroidal coil, toroid choke coil, power inductors, power magnetics, UPS inductor, converter inductors, heavy toroidal core,etc.
Specification

Wire diameter	1.0-4.0	Max.winding speed	150rpm
Max.final coil.O.D	φ130-650	Wire spacing	Proportional linkage
Min.final coil.I.D	φ60	Supply voltage	AC 220V(50Hz)
Max.finalcoil height	150	Mechanical dimensions	900×600×1350mm
Controller storage capacity Programs	29 (set)	Weight	240kg

GWM-0619 (winding machine/Mag.OD.400)
(unit): mm
Related Products
1.GWM-0319B Gear type toroidal coil winding machine

Wire diameter	0.50-1.30	Max.winding speed	200rpm
Max.final coil.O.D	φ60-200	Wire spacing	Proportional linkage
Min.final coil.I.D	φ25	Supply voltage	AC 220V(50Hz)
Max.finalcoil height	80	Mechanical dimensions	550*500*750
Controller storage capacity Programs	29 (set)	Weight	94kg

GWM-0319B (winding machine/Mag.OD.400)
(unit): mm
2.GWM-0119 Gear type toroidal coil winding machine

Wire diameter	0.70-2.50	Max.winding speed	200rpm
Max.final coil.O.D	φ60-200	Wire spacing	Proportional linkage
Min.final coil.I.D	φ40	Supply voltage	AC 220V(50Hz)
Max.finalcoil height	100	Mechanical dimensions	550*500*780
Controller storage capacity Programs	29 (set)	Weight	94kg

GWM-0119(winding machine/Mag.OD.400)
(unit): mm
3.GW0950 Mobile rectangular coil winding machine

Wire diameter	0.70-2.00	Max.winding speed	200rpm
Max.final coil.O.D	φ65-500,55	Wire spacing	Proportional linkage
Min.final coil.I.D	φ50-430,45	Supply voltage	AC 220V(50Hz)
Max.finalcoil height	80	Mechanical dimensions	1000*950*780
Controller storage capacity Programs	29 (set)	Weight	110kg

GW0950(winding machine/Mag.OD.400)
(unit): mm
4.GWTM-0218 Gear type automatic wrapping insulating tape machine

Tape width	12(8,10,15)	Max.taping speed	250rpm
Max.final coil.O.D	φ50-200	Tape spacing	Proportional linkage
Min.final coil.I.D	φ35	Supply voltage	AC 220V(50Hz)
Max.finalcoil height	80	Mechanical dimensions	550×500×1100
Controller storage capacity Programs	29 (set)	Weight	100kg

GWTM-0218 (taping machine/Mag.OD.400)
(unit): mm
5.GWTM-0418 Gear type automatic wrapping insulating tape machine

Tape width	15(20,25,30)	Max.taping speed	120rpm
Max.final coil.O.D	φ130-650	Tape spacing	Proportional linkage
Min.final coil.I.D	φ60	Supply voltage	AC 220V(50Hz)
Max.finalcoil height	150	Mechanical dimensions	9000×600×1800
Controller storage capacity Programs	29 (set)	Weight	240kg

GWTM-0418 (taping machine/Mag.OD.400)
(unit): mm
Of course we have other models, please contact us if you need.
Contect us
Tell us your toroidal coil of data as below please:
1.toroid core outside diameter before winding?
2.toroid core inside diameter before winding?
3.toroid core height before winding?
4.how many windings on this core?
5.how many tape windings total on this toroidal coil?
6.how about the tape width of each tape winding?
7.how many turns of each tape winding?
8.provide pictures of product which is better.
Alice.Lee
Tianjin Grewin Technology Co.,Ltd.
Web:transformer.en.made-in-china.com
Address: 2# MeiNian Plaza No.16 DongTing Road,Hexi Distr,300222,Tianjin China.

---
