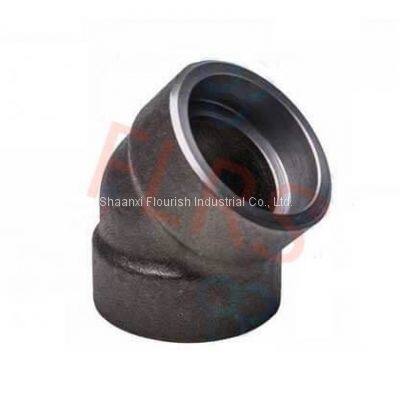

Forged pipeline Fitting Carbon Steel Material ASTM A105 Socket Weld 45-deg Elbow Hot Dip Galvanised
Hot dipped galvanized socket weld elbow dimensions is from 1/8” to 4”, class 2000, class 3000, class 6000 and class 9000. Socket weld fittings have exceptional strength of welded joints. Hot dip galvanizing is a prevalent coating for carbon steel forged fittings because the coating is even and thicker than cold galvanizing and has better corrosion resistance.
| Dimensions | ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799 |
| Size | 1/8″~4″ (DN6~DN100) |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Type | Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT |
| Form | 90 Deg Threaded Elbow, Threaded Elbow, Threaded Pipe elbow |
| Value Added Services: | Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering |
| Production Grades: | Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel |
